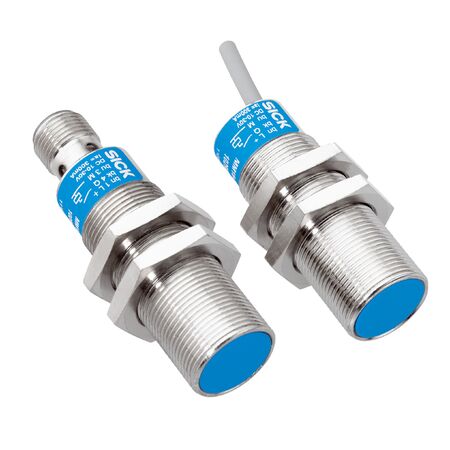

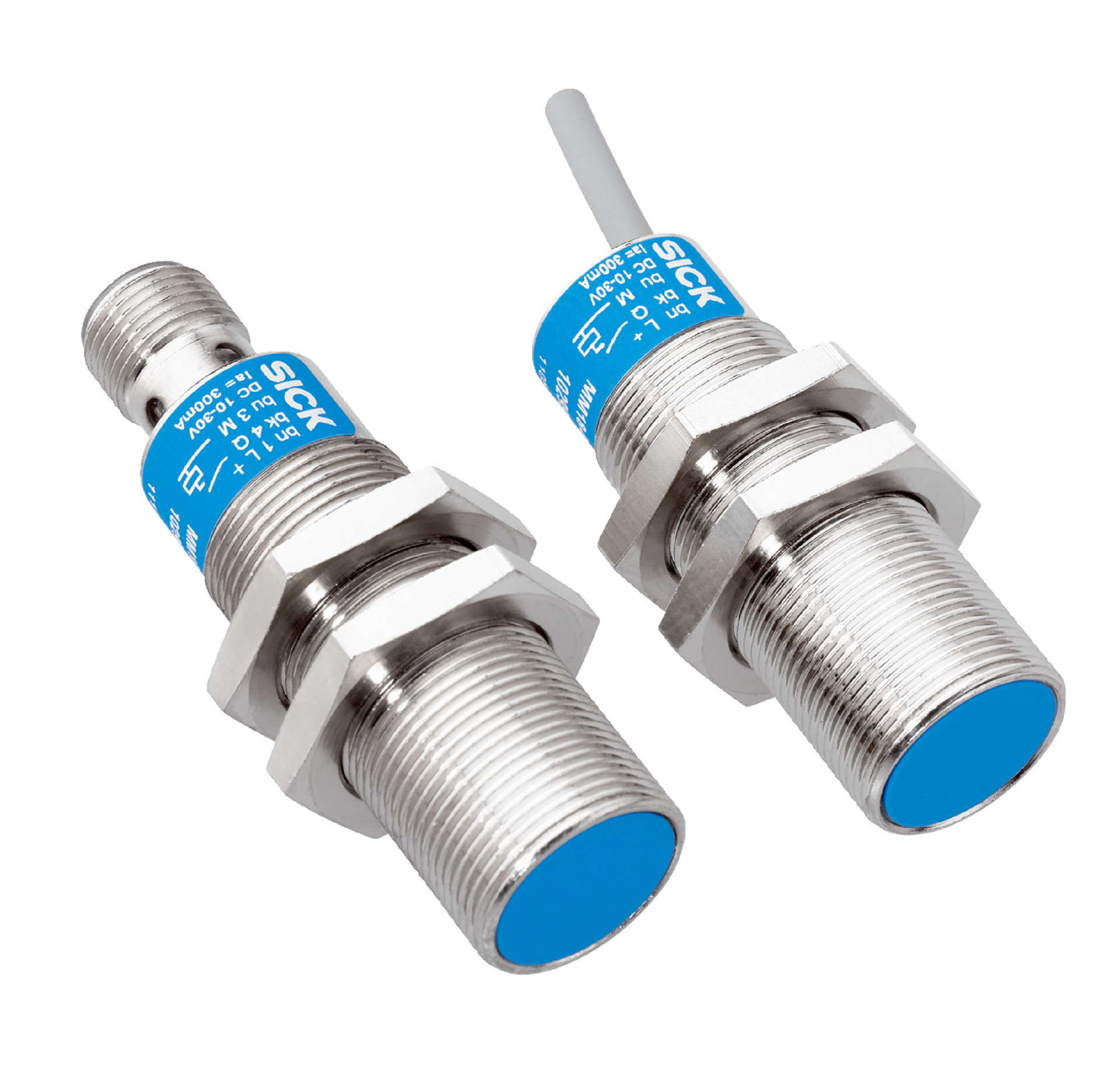

M18 Magnetic Proximity Sensor | PNP Output | IP67 Rated | 5mm to 120mm Sensing Range | by SICK
The M18 Magnetic Proximity Sensor is designed for industrial automation, featuring a sensing range from 5 mm to 120 mm and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for reliable position detection in manufacturing processes and safety systems, ensuring durability and long-term performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 10 mA
- Switching frequency: 1,000 Hz
- Sensing range Sn: 5 mm to 120 mm
- Safe sensing range Sa: 97.2 mm
- Magnetic sensitivity: 0.3 mT
- Output function: Normally Open (NO), PNP switching output
- Electrical wiring: DC 3-wire
- Connection type: Cable, 3-wire, 3 m
- Enclosure rating: IP67
- Housing material: Metal, nickel-plated brass
- Temperature range: -40 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Reverse polarity, short-circuit, and power-up pulse protection included
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Advanced metal housing with nickel-plated brass for durability
- Thread size M18 x 1 with 50 mm housing length
- Sensing range from 5 mm to 120 mm with safe sensing range of 97.2 mm
- PNP switching output with normally open (NO) function
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Cable connection type, 3-wire, 3 meters long
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -40 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position detection
- Magnetic sensing in manufacturing processes
- Safety and control systems requiring reliable magnetic sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption (10 mA)
- Long mission time of 20 years reduces environmental impact of replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MM18-00APS-ZUA Magnetic Sensor is available for immediate purchase, ideal for industrial automation and magnetic sensing applications.
