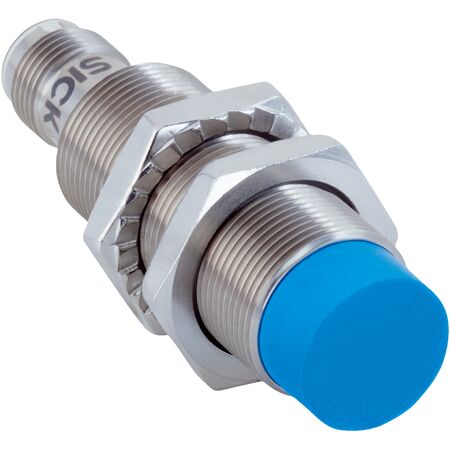

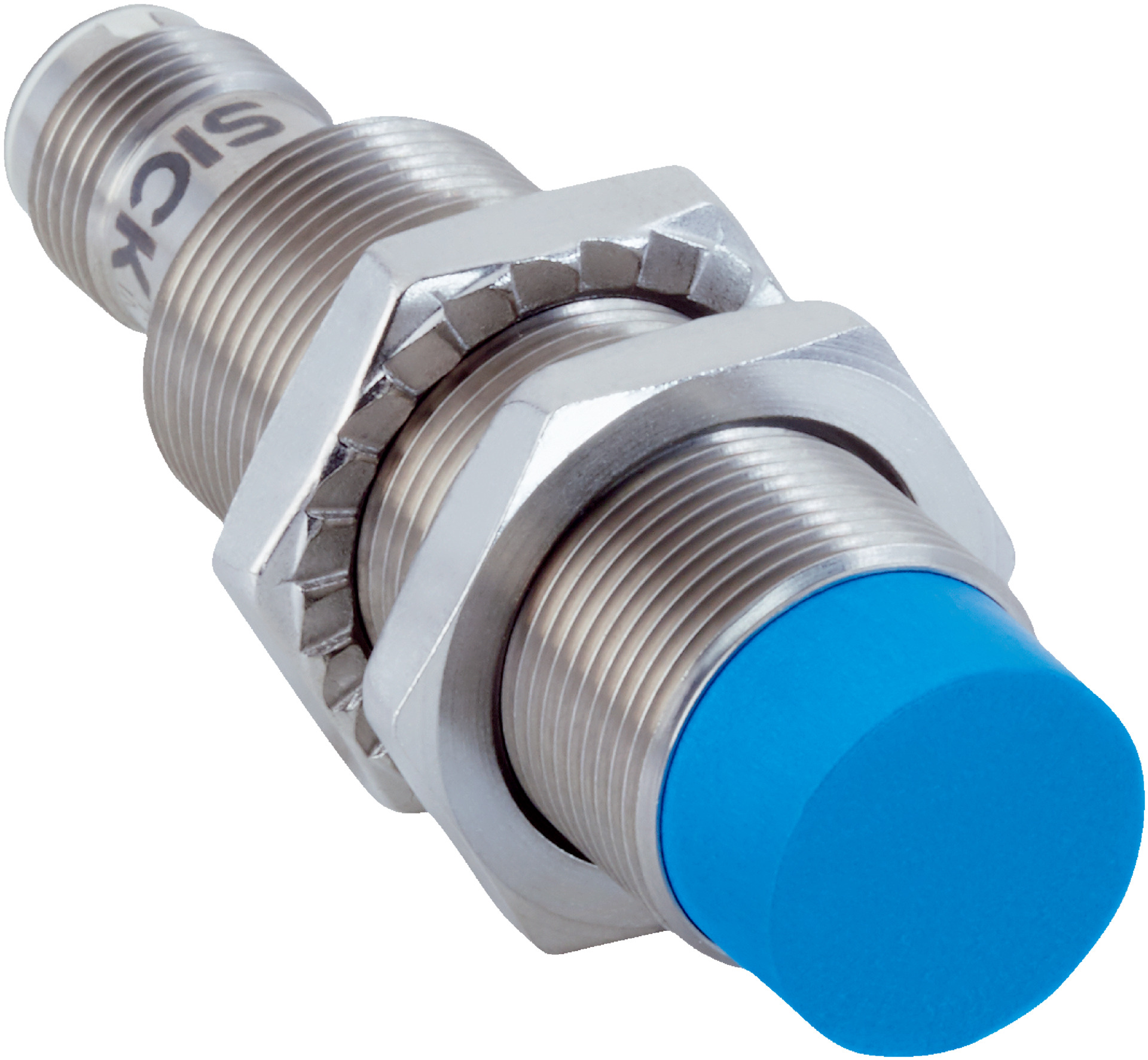

M18 PNP Proximity Sensor | IO-Link Communication | IP68 & IP69K Rated | Stainless Steel Housing | by SICK
The M18 PNP Proximity Sensor is designed for industrial automation, featuring IO-Link communication and an IP68/IP69K rated enclosure for harsh environments. With a sensing range of up to 12 mm and programmable switching points, it's perfect for object detection in challenging conditions, ensuring high durability and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Programmable hysteresis
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Resolution typical: 40 μm (0-8 mm), 75 μm (8-10 mm), 150 μm (10-12 mm)
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), 5 ms cycle time
- Process data length: 32 Bit
- Dimensions (H x L x W): 65mm x 65mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Sensing range up to 12 mm with safe sensing range of 9.72 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Switching frequency of 250 Hz
- Non-flush installation type
- Male connector M12, 4-pin connection
- PNP switching output with programmable NC/NO function
- IP68 and IP69K rated enclosure for harsh environments
- Smart Task logic functions including AND, OR, XOR, hysteresis
- Resistant against coolant lubricants
- IO-Link V1.1 communication interface with 5 ms cycle time
- Shock and vibration resistant with high durability
- Operating temperature range from -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting torque and proper electrical connection.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- Energy-efficient operation with low voltage DC supply
- Resistant to harsh environments reducing need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMC18-12NPPVC0SB00 sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
