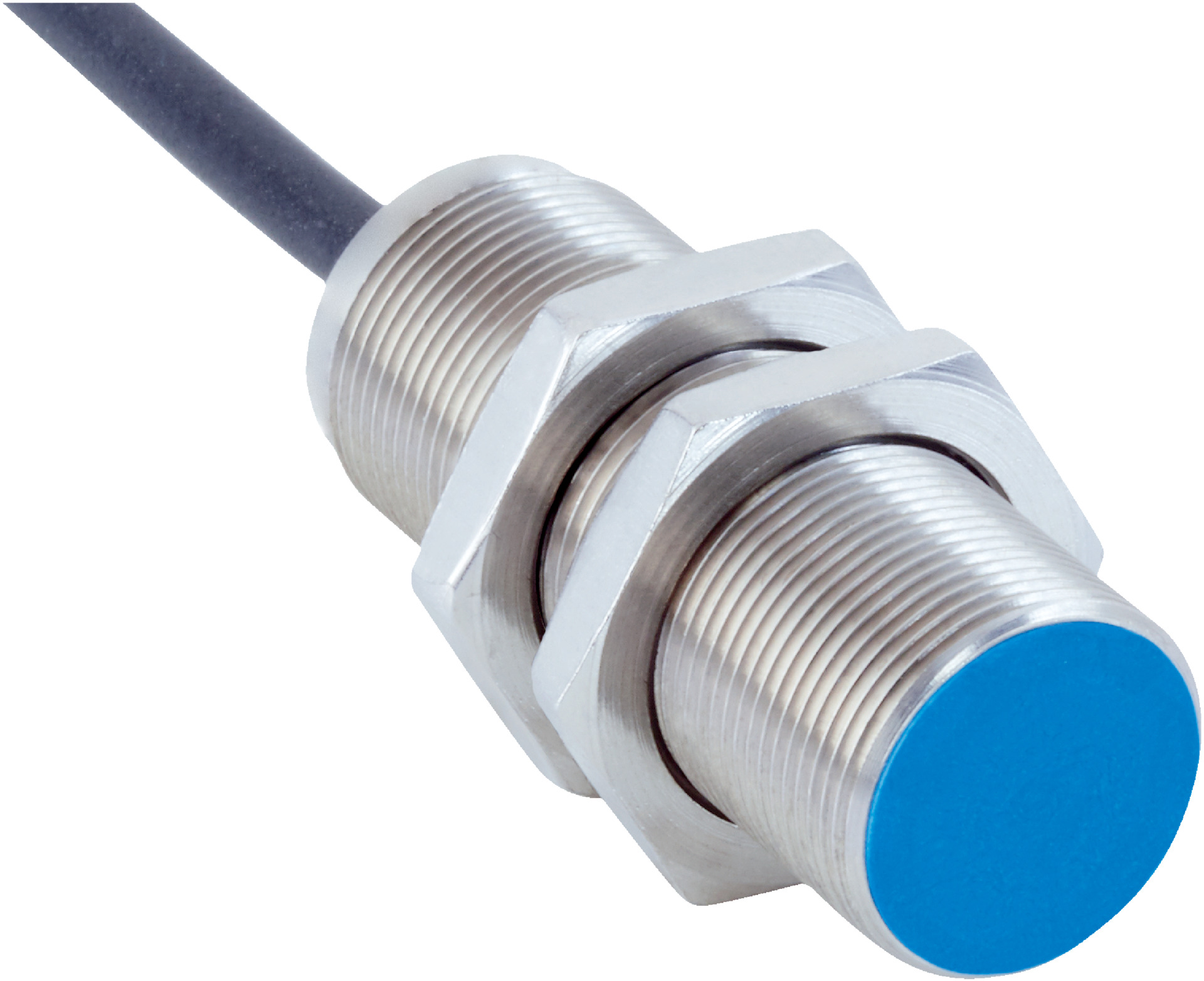

M18 Proximity Sensor | IP68 Rated | Quasi-Flush Installation | 14mm Sensing Range | by SICK
The M18 Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 14mm sensing range and IP68 rated enclosure for protection against dust and water. Ideal for environments with coolants and lubricants, this sensor ensures safe operation with a switching frequency of 25 Hz and robust construction for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 150 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 50 mA
- Cable material: PUR, diameter Ø 4.5 mm, conductor size 0.34 mm²
- Protection class: III
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing length: 59 mm, Thread length: 54.5 mm
- Tightening torque max: ≤ 30 Nm
- EMC compliant according to EN 60947-5-2
- Enclosure rating: IP68
- Dimensions (H x L x W): 59mm x 59mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Quasi-flush installation type
- Sensing range Sn of 14 mm with safe sensing range Sa of 11.34 mm
- Switching frequency of 25 Hz with PNP NC output
- Cable connection, 3-wire, 2 m length
- IP68 rated enclosure for protection against dust and water
- Quadruple sensing range and resistant against coolant lubricants
- Visual adjustment indicator with yellow and green LEDs
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic LCP sensing face
- Service interface IO-Link for advanced configuration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper function and compliance.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMX18-14BPOZU2S sensor is available for immediate purchase, ideal for industrial automation and safety applications in environments with coolants and lubricants.
