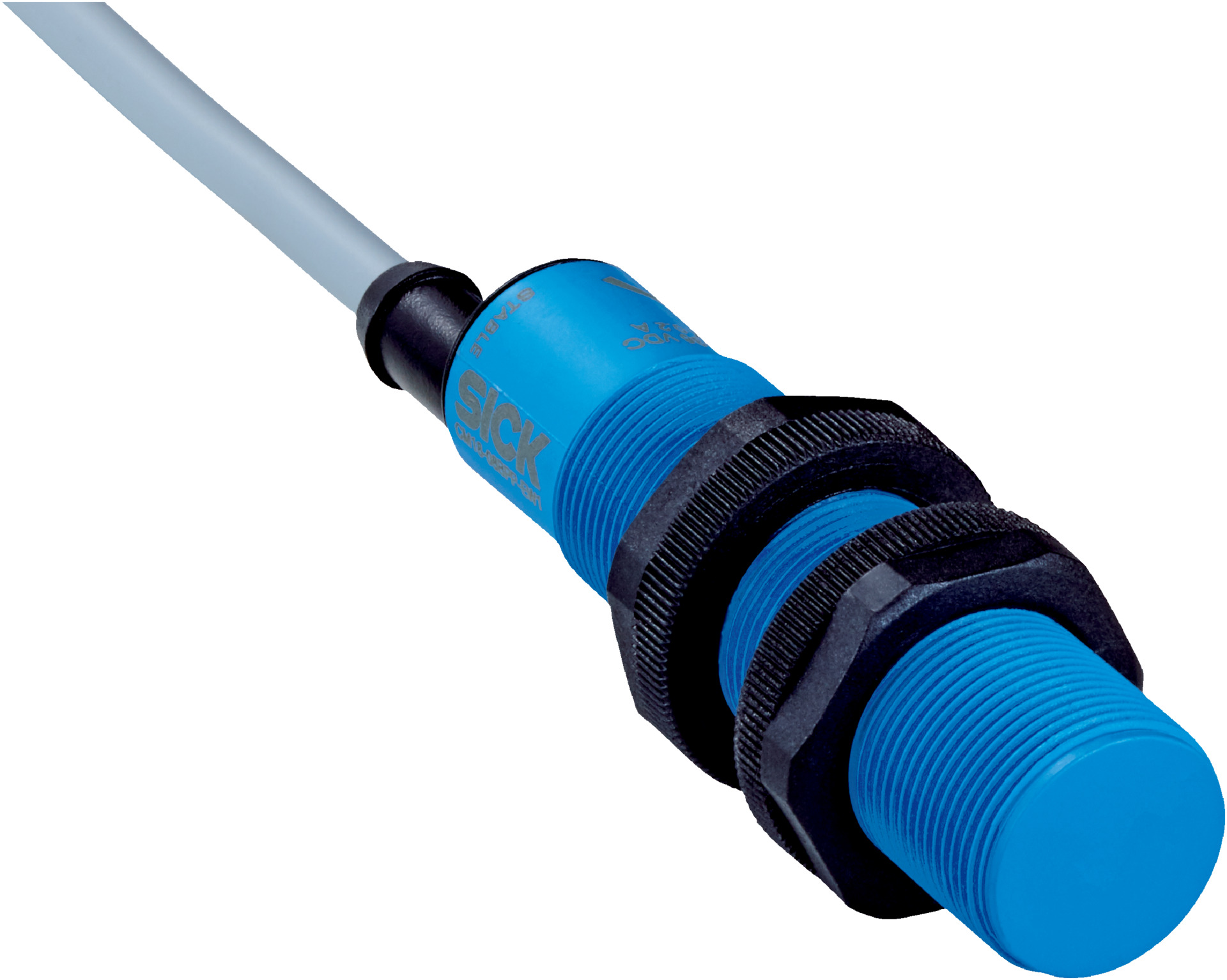

M18 Proximity Sensor | NPN Output | IP68 & IP69K Rated | 3-8mm Sensing Range | by SICK
The M18 Proximity Sensor is designed for reliable object detection in industrial automation, featuring a sensing range of 3 mm to 8 mm and a robust IP68/IP69K enclosure rating. With NPN output and a switching frequency of 50 Hz, this sensor is perfect for manufacturing process control and safety monitoring in machinery, ensuring durability and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 12 mA
- Switching frequency: 50 Hz
- Sensing range Sn: 3 mm to 8 mm
- Safe sensing range Sa: 6.12 mm
- Output type: NPN, complementary, wire configurable
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68, IP69K
- Cable: 2 m PVC, 4-wire, 0.34 mm² conductor size, 5.2 mm diameter
- Voltage drop: ≤ 2.5 V DC
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ±10%
- Shock and vibration resistance: EN 60068
- Operating temperature: -30°C to +85°C
- Housing material: Plastic, PBT
- Thread size: M18 x 1
- Housing length: 81 mm
- Thread length: 55 mm
- Tightening torque max: ≤ 2.6 Nm
- Dimensions (H x L x W): 81mm x 18mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric housing with M18 x 1 thread size
- Sensing range from 3 mm to 8 mm with safe sensing range of 6.12 mm
- Flush installation type
- Switching frequency of 50 Hz
- NPN switching output with complementary and wire configurable output function
- DC 4-wire electrical wiring
- Sensitivity adjustable via 11-turn potentiometer
- High enclosure rating of IP68 and IP69K for harsh environments
- Includes mounting nuts and screwdriver for adjustment
- Short-circuit and power-up pulse protection
- Shock and vibration resistant according to EN 60068
- Wide ambient operating temperature range from -30°C to +85°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Robotics and assembly lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP68/IP69K rated housing reduces need for frequent replacements
- Low power consumption with 12 mA current draw
- Long service life reduces electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

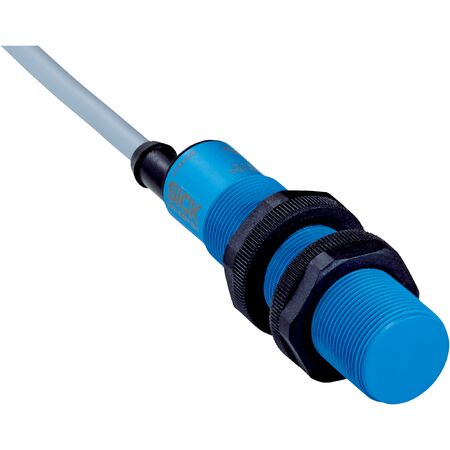

The SICK CM18-08BNP-EW1 proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
