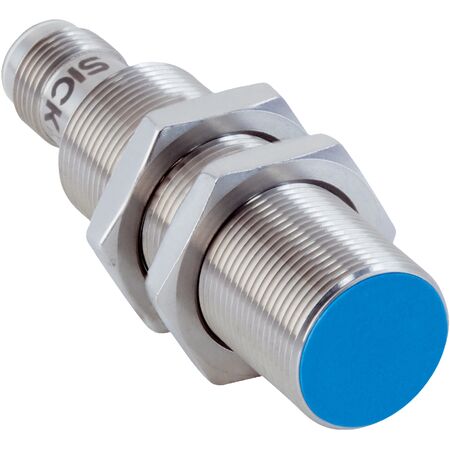

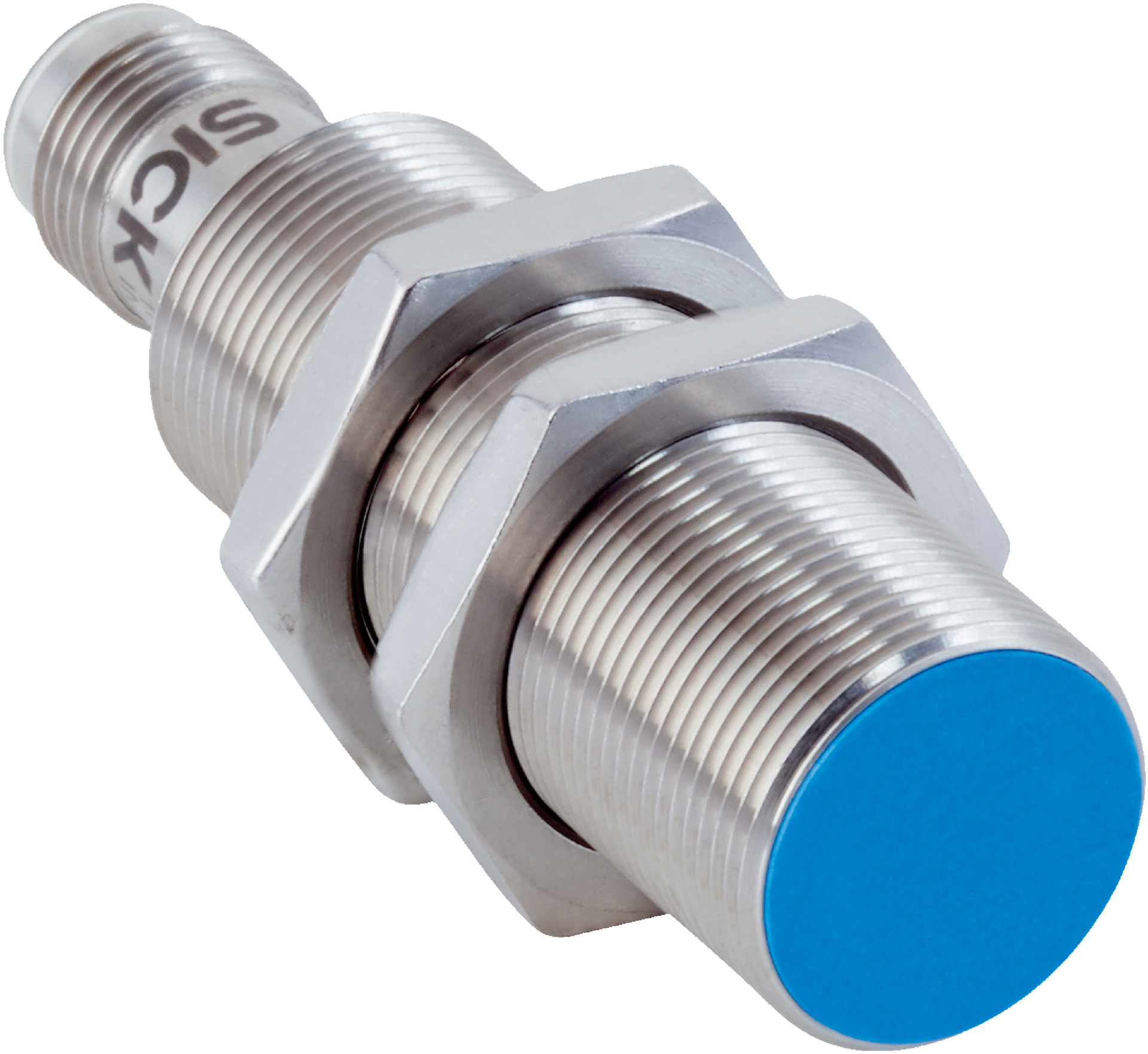

M18 Proximity Sensor | PNP Normally Open | IP68 & IP69K Rated | Quasi-Flush Installation | by SICK
The M18 Proximity Sensor is designed for robust industrial applications, featuring a PNP normally open output and an impressive IP68 and IP69K enclosure rating. With a sensing range of 8 mm and a wide operating temperature from -40 °C to +100 °C, it's perfect for mobile machines and hygienic environments. Built with durable stainless steel housing, this sensor ensures longevity and reliability in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Switching output: PNP normally open
- Switching frequency: 1,000 Hz
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Enclosure rating: IP68 and IP69K
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic LCP
- Operating temperature: -40 °C to +100 °C
- Shock resistance: 100 g, 11 ms shocks
- Vibration resistance: 25 g peak (10 Hz to 2,000 Hz)
- EMC compliance: Meets multiple standards including ECE-R10 Rev. 5 and DIN ISO 11452-2
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Quasi-flush installation type
- Switching frequency of 1,000 Hz with PNP normally open output
- Male M12 4-pin connector for connection
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Stainless steel V4A housing and plastic sensing face
- Wide operating temperature range from -40 °C to +100 °C
- Includes mounting nuts, brass nickel-plated
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents supports hygienic environments
- Energy efficient low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IMS18-08BPSNC0S proximity sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
