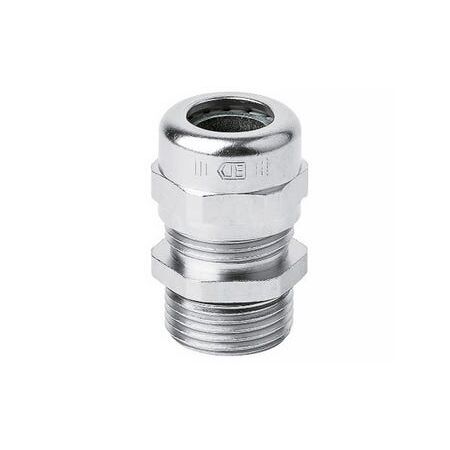

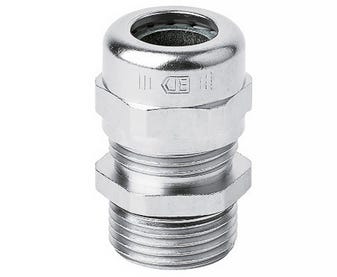

M20 Cable Gland | IP68 Rated | Nickel Plated Brass | 9-13mm Cable OD by Cabac
The Cabac Nickel Plated Brass Gland M20 is an unarmoured metric cable gland designed for PVC, XLPE, and synthetic cables. It features a nickel plated brass body, IP68 rating, and a camera shutter sealing mechanism for reliable ingress protection and strain relief.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac Nickel Plated Brass Gland M20 Cable OD 9-13mm
Brand: Cabac
SKU: GU20
Alternatively Known As: M20 Cable Gland, Nickel Plated Brass Cable Gland, Metric Cable Gland M20, IP68 Cable Gland, Unarmoured Cable Gland
Technical Specifications
- IP Rating: IP68
- Material: Nickel plated brass body, Polyamide 6 insert (self-extinguishing), Neoprene seal and O-ring (self-extinguishing)
- Cable Diameter Range: 9mm to 13mm
- Operating Temperature: -20°C to +100°C
- Strain Relief and Twisting Protection: To DIN VDE 0619
- Threading: According to IEC 423, IEC 423A and EN 60423
- Chemical Resistance: Resistant to organic solvents, mineral, animal and vegetable oils, fat and petrol
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.05 kg
Key Features
- Nickel plated brass body for corrosion resistance
- Rated IP68 for superior ingress protection
- Camera shutter style sealing mechanism for wide cable diameter range
- Strain relief and twisting protection rated to DIN VDE 0619
- Fully insulated seal ensuring fluid tightness
- Chemical resistant to organic solvents, oils, fats, and petrol
- Operates in temperatures from -20°C to +100°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical standards.
Applications
- Sealing and securing PVC, XLPE, and synthetic cables in electrical installations
- Industrial and commercial cable management requiring high ingress protection
- Use in environments exposed to oils, solvents, and varying temperatures
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel plated brass construction reduces need for frequent replacements
- Chemical resistance extends product life, minimizing waste
- Ensures secure cable sealing to prevent environmental contamination
Warranty Information
Standard manufacturer warranty against defects; please refer to Cabac warranty policy for details.
Available Now
The Cabac Nickel Plated Brass Gland M20 Cable OD 9-13mm is available for immediate purchase. Ideal for industrial and commercial cable management applications requiring high ingress protection.
