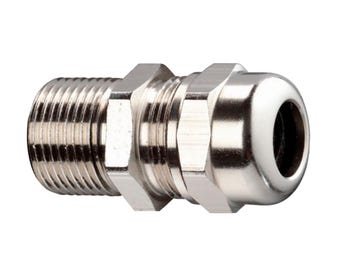

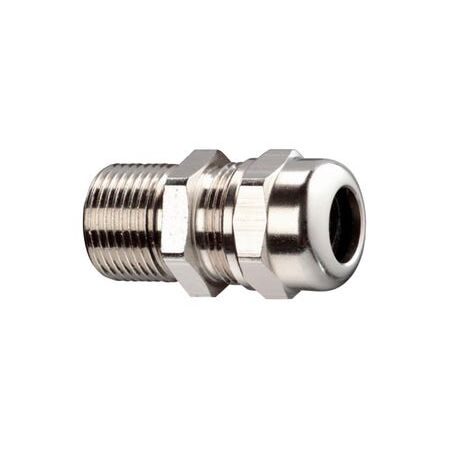

M20 Cable Gland NP Non Arm 10-16mm | Nickel Plated Brass | Ex d & Ex e Protection | Single Compression by Cabac
The Cabac M20 Gland NP Non Arm 10-16mm is a nickel plated brass single compression cable gland designed for unarmoured cables, providing explosion proof and increased safety protection in hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M20 GLAND NP NON ARM 10-16MM Ex de
Brand: Cabac
SKU: EXN04MLC2
Alternatively Known As: Explosion Proof Cable Gland, Nickel Plated Brass Cable Gland, Hazardous Area Cable Gland, M20 Cable Gland
Technical Specifications
- Cable Size Range: 10-16mm
- Material: Nickel plated brass
- Protection Types: Ex d (explosion proof), Ex e (increased safety), Ex t D (dust protection)
- Type: Single compression
- Application: Unarmoured cable
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Single compression cable gland for unarmoured cables
- Provides secure cable connections through knockouts and threaded entries
- Ex d explosion proof, Ex e increased safety, and Ex t D dust protection
- Good corrosion resistance with nickel plated brass construction
Professional Installation Requirements
- Installation by a qualified electrician experienced in hazardous area equipment is required to ensure compliance and safety.
Applications
- Industrial hazardous areas requiring explosion-proof cable connections
- Use with unarmoured cables for secure cable entry
- Suitable for electrical installations in explosive atmospheres
Standards & Compliance
- Complies with AS/NZS 60079 for Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel plated brass reduces need for frequent replacements
- Supports safe electrical installations in hazardous environments, preventing accidents and environmental damage
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac M20 Gland NP Non Arm 10-16mm is available now for immediate purchase. Ideal for industrial and hazardous area electrical installations requiring explosion proof cable glands.
