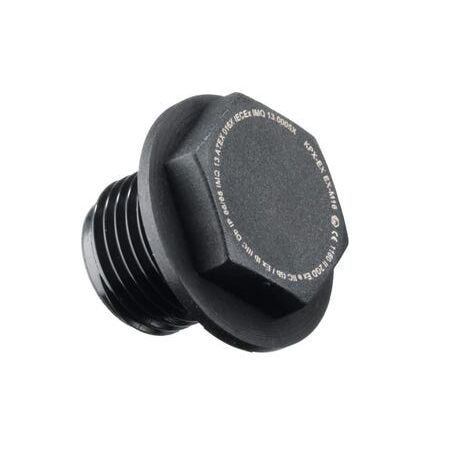

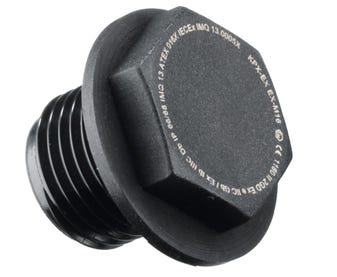

M20 EEXE Stopping Plug | Nylon Material | IP66 to IP68 Ingress Protection | -40ºC to +80ºC by Cabac

BRAND: CABAC
SKU: EX-M20
$4.00 List price: $4.80
+ −
30 Days Return Delivery Options
The Cabac M20 EEXE Nylon Stopping Plug provides a reliable sealing solution for hazardous and explosive environments, compliant with EN/IEC 60079 standards and rated IP66-IP68 for superior ingress protection.

Product Name/Title: M20 EEXE STOPPING PLUG WITH SEALING

Brand: Cabac

SKU: EX-M20

Alternatively Known As: Nylon Stopping Plug, Ex e Stopping Plug, Cable Stopping Plug, Explosion Proof Stopping Plug

Technical Specifications
  • Material: Nylon
  • Operating Temperature Range: -40ºC to +80ºC
  • Ingress Protection: IP66 to IP68 (5 Bar, 30 minutes)
  • Thread Type: Metric (M12, M16, M20, M25, M32, M40, M50, M63)
  • Certifications: EN/IEC 60079-0, 60079-7, 60079-31
  • Certification Bodies: EC TYPE Examination IMQ 13ATEX016X, IECEx IMQ 13.0005X
  • Marking: Ex e IIC Gb, Ex tb IIIC Db
  • Dimensions (H x L x W): 20mm x 30mm x 20mm
  • Weight: 0.05 kg
Key Features
  • Made from durable Nylon material
  • Operating temperature range from -40ºC to +80ºC
  • Ingress protection rated IP66 to IP68 (5 Bar, 30 minutes)
  • Metric thread sizes available from M12 to M63
  • Supplied with a flat washer to ensure IP protection
Professional Installation Requirements
  • Installation should be performed by a qualified professional experienced in hazardous area electrical equipment to ensure compliance with safety standards.
Applications
  • Use in hazardous and explosive environments including Zones 1, 2, 21, and 22
  • Sealing and stopping plug applications in Ex e electrical installations
Standards & Compliance
  • AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
  • Durable nylon construction reduces need for frequent replacements
  • High ingress protection minimizes environmental contamination risks
Warranty Information

Warranty terms available upon request from manufacturer.

Available Now

The Cabac M20 EEXE Nylon Stopping Plug is available for immediate purchase, ideal for use in hazardous and explosive electrical installations requiring reliable sealing.
