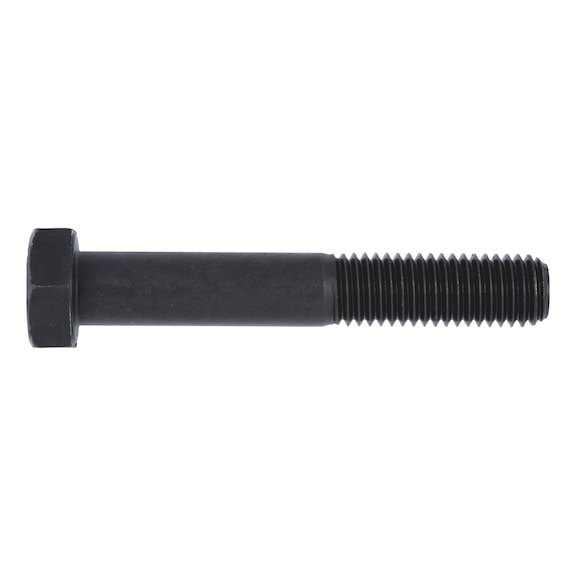

M20 Hex Bolt | High Strength Steel | Plain Surface Finish | by Wurth
The M20 Hex Bolt is designed for robust fastening in mechanical assemblies, construction, and automotive applications. Made from high-strength steel with a property class of 10.9, this bolt features a hexagon head for easy tightening and a partial metric thread design for secure fastening. RoHS-compliant, it ensures environmental safety while providing durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M20 Hex Bolt | High Strength Steel | Plain Surface Finish | by Wurth
Brand: Wurth
SKU: 5220200
Alternatively Known As: Hex Bolt M20, Metric Hex Bolt, Steel Hex Head Bolt, High Strength Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M20
- Length (l1): 200 mm
- Head height (k1): 12.5 mm
- External drive (s1): WS30
- Standards: ISO 4014
- Material: Steel
- Property class: 10.9
- Surface: Plain
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 52 mm
- Product class: B
- RoHS-compliant: Yes
- Dimensions (H x L x W): 12.5mm x 200mm x 20mm
- Weight: 0.3 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Partial metric thread design for secure fastening
- Made from steel with property class 10.9 for high strength
- Plain surface finish
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring strong fastening
- Construction and structural applications
- Automotive and machinery assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth M20 x 200mm Hexagon Head Bolt is available for immediate purchase, ideal for construction, automotive, and industrial fastening applications.
