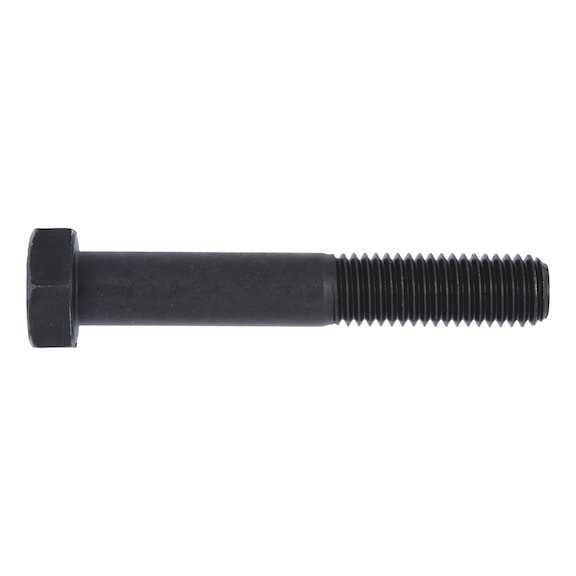

M20 Hex Bolt | High Strength Steel | Plain Surface Finish | by Wurth
The M20 Hex Bolt is crafted from high-strength steel with a property class of 10.9, ensuring secure fastening for mechanical assemblies and construction applications. Featuring a hexagon head with an outer hexagon drive, this bolt allows for easy tightening and is RoHS-compliant, making it an environmentally safe choice for industrial machinery and equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M20 Hex Bolt | High Strength Steel | Plain Surface Finish | by Wurth
Brand: Wurth
SKU: 5220230
Alternatively Known As: Hex Bolt M20, Metric Hex Bolt, Steel Hex Head Bolt, High Strength Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M20
- Length (l1): 230 mm
- Head height (k1): 12.5 mm
- External drive (s1): WS30
- Standards: ISO 4014
- Material: Steel
- Property class: 10.9
- Surface: Plain
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 65 mm
- Product class: B
- RoHS-compliant: Yes
- Dimensions (H x L x W): 12.5mm x 230mm x 20mm
- Weight: 0.3 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Partial metric thread design for secure fastening
- Made from high-strength steel with property class 10.9
- Plain surface finish
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate tools to ensure correct torque and fastening integrity.
Applications
- Mechanical assemblies requiring high-strength fastening
- Construction and structural applications
- Industrial machinery and equipment fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances impact
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth M20 x 230mm Hexagon Head Bolt is available for immediate purchase, ideal for industrial, construction, and mechanical fastening applications.
