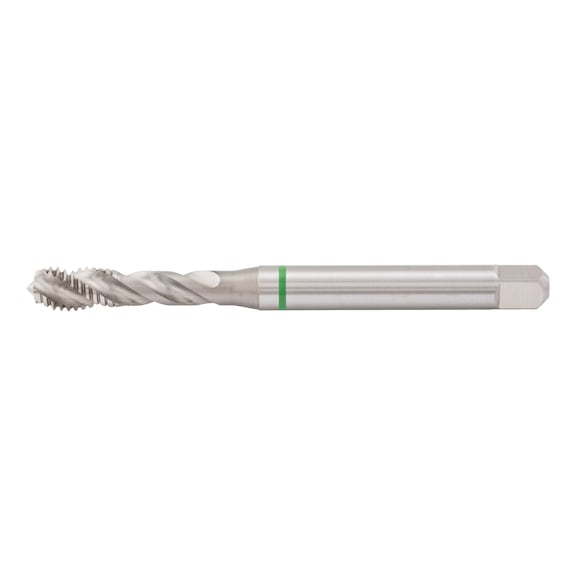

M20 Machine Tap | HSCo Cutting Material | ZEBRA-Premium Quality | by Wurth
The M20 Machine Tap is designed for precision machining of alloyed and stainless steels, featuring a metric thread type M20 with a 2.5 mm pitch. Made from HSCo cutting material, this tap ensures high precision and durability, making it ideal for trained machinists using milling and drilling machines. With a twist angle of 40° and ISO 2 (6H) tolerance, it delivers excellent cutting behavior and trueness to gauge.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M20 Machine Tap | HSCo Cutting Material | ZEBRA-Premium Quality | by Wurth
Brand: Wurth
SKU: 655020
Alternatively Known As: Machine Tap M20, Metric Thread Tap, HSCo Thread Cutter, Stainless Steel Tap
Technical Specifications
- Thread type: Metric thread M20
- Material to be processed: Steel, Stainless steel
- Hole type: Blind hole up to 2.5xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Pitch: 2.5 mm
- Length: 140 mm
- Shank diameter: 16.0 mm
- Size of square: 12.0 mm
- DIN: 376
- Cutting material: HSCo
- Surface: Plain
- Form: C
- Core hole diameter: 17.5 mm
- Twist angle: 40° (right)
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Suitable for tensile strength up to: 1000 N/mm²
- Service life (points system): 2 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 2 of 4 points
- Material of sub-group: Stainless steels, sulphurated, austenitic, martensitic
- Dimensions (H x L x W): 140mm x 140mm x 16mm
- Weight: 0.3 kg
Key Features
- Metric thread type M20 with 2.5 mm pitch
- Made from HSCo cutting material with plain surface finish
- Cylindrical shank with square drive (12 mm size)
- Designed for blind holes up to 2.5xD
- High precision with ISO 2 (6H) tolerance
- Suitable for tensile strength up to 1000 N/mm²
- ZEBRA-Premium quality
- Twist angle 40° (right)
- Good cutting behaviour and trueness to gauge
Professional Installation Requirements
- Use by trained machinists or operators with appropriate machine tools and safety equipment is recommended.
Applications
- Machining alloyed and high-alloyed steels including stainless, rust-resistant, and acid-resistant steels
- Processing conventional steel materials up to 850 N/mm² strength
- Suitable for milling/drill centers and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces frequency of replacement and waste
- High precision reduces material waste during machining
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth M20 Machine Tap is available for immediate purchase, ideal for precision machining of alloyed and stainless steels in industrial and manufacturing settings.
