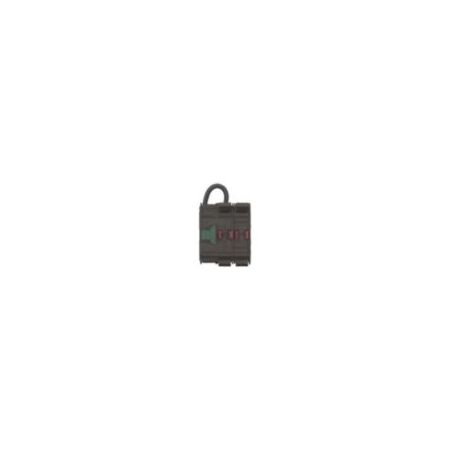

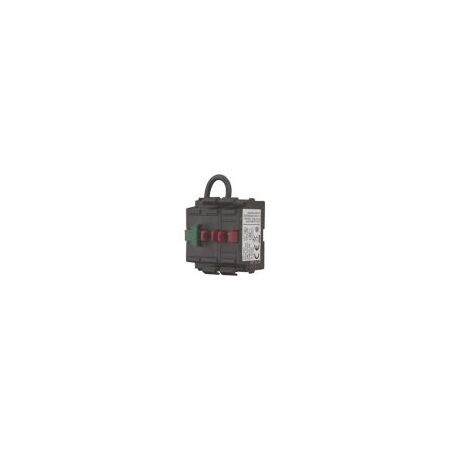

M22 Self-Monitoring Contact Element | 24V | 3A Current Rating | Front Fixing Design by Eaton
M22 self-monitoring contact element with 24V voltage rating and 3A current capacity—ideal for industrial control panels and automation systems. Built for safety circuits requiring positive opening contacts, featuring screw terminals for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M22 Self-Monitoring Contact Element | 24V | 3A Current Rating | Front Fixing Design by Eaton
Brand: Eaton
SKU: Y7-121474
Alternatively Known As: M22 Accessory Contact Element, M22 Self-monitoring Contact Block, Eaton M22 Contact Element
Technical Specifications
- Product Name: Eaton Moeller® series M22 Accessory Contact element
- Catalog Number: 121474
- Contacts: 1 N/O, 2 N/C
- Voltage Rating: 24 V
- Current Rating: 3 A
- Mounting: Front fixing
- Terminals: Screw terminals
- Safety Function: Positive opening contacts to IEC/EN 60947-5-1
- Certifications: CE Marked, CSA Std. C22.2 No. 94-91, CSA Std. C22.2 No. 14-05, UL 508, EN 60947-5, IEC 60947
- Dimensions (H x L x W): 30mm x 38mm x 32mm
- Weight: 0.032 kg
Key Features
- Self-monitoring contact elements with screw terminals
- Front fixing design
- 1 Normally Open (N/O) and 2 Normally Closed (N/C) contacts
- Rated for 24 V and 3 A
- Contacts with safety function by positive opening to IEC/EN 60947-5-1
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial control equipment to ensure compliance with safety standards.
Applications
- Industrial control panels
- Automation systems
- Safety circuits requiring positive opening contacts
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Complies with international safety and environmental standards
Warranty Information
Standard Eaton warranty applies; typically 1 year against manufacturing defects.
Available Now
The Eaton Moeller M22-K02SMC10 Self-monitoring Contact Element is available for immediate purchase, ideal for industrial automation and safety control applications.
