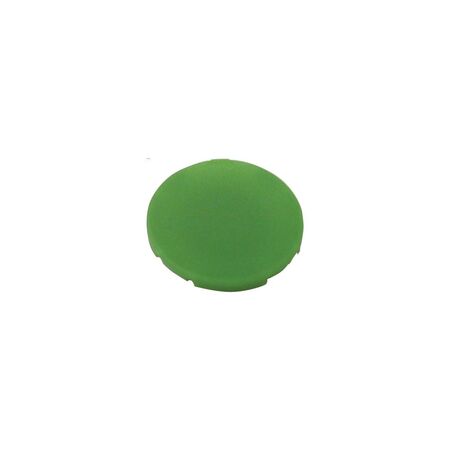

M22-XD-G Flat Green Button Plate Round Shape Flush Design Eaton
The M22-XD-G flat green button plate is designed for easy identification in industrial control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Construction type: Flat
- Color: Green
- Shape: Round
- Design: Flush
- Ambient operating temperature: -25 °C to 70 °C
- Program diameter: 22 mm
- Outside diameter: 22.5 mm
- Rated operational current: 0 A (accessory only)
- Heat dissipation: 0 W
- Connection to SmartWire-DT: No
- Inscription type: Blank
- Dimensions (H x L x W): 3mm x 24mm x 24mm
- Weight: 0.1 kg
Key Features
- Flat, flush design with a round shape
- Green color for easy identification
- Blank inscription type for custom labeling or no marking
- Meets product standard requirements for corrosion resistance, thermal stability, and mechanical function
- Ambient operating temperature range from -25 °C to 70 °C
- Program diameter 22 mm, outside diameter 22.5 mm
Professional Installation Requirements
- Installation should be performed by a qualified electrician or panel builder to ensure compliance with electrical standards and proper integration with switchgear.
Applications
- Used as an accessory button plate for Eaton Moeller M22 series push buttons
- Suitable for industrial control panels and switchgear assemblies
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Meets thermal and corrosion resistance standards, ensuring long product life
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller M22-XD-G flat green button plate accessory is available for immediate purchase, ideal for use in industrial control panels and switchgear assemblies.
