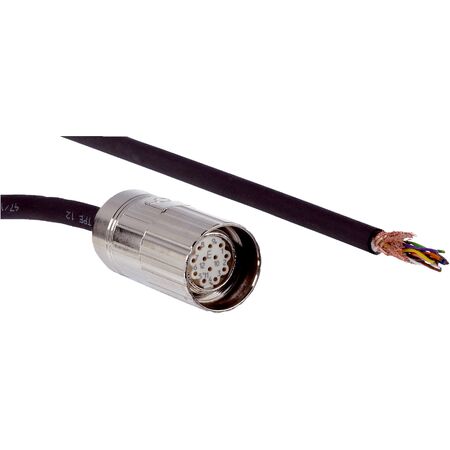

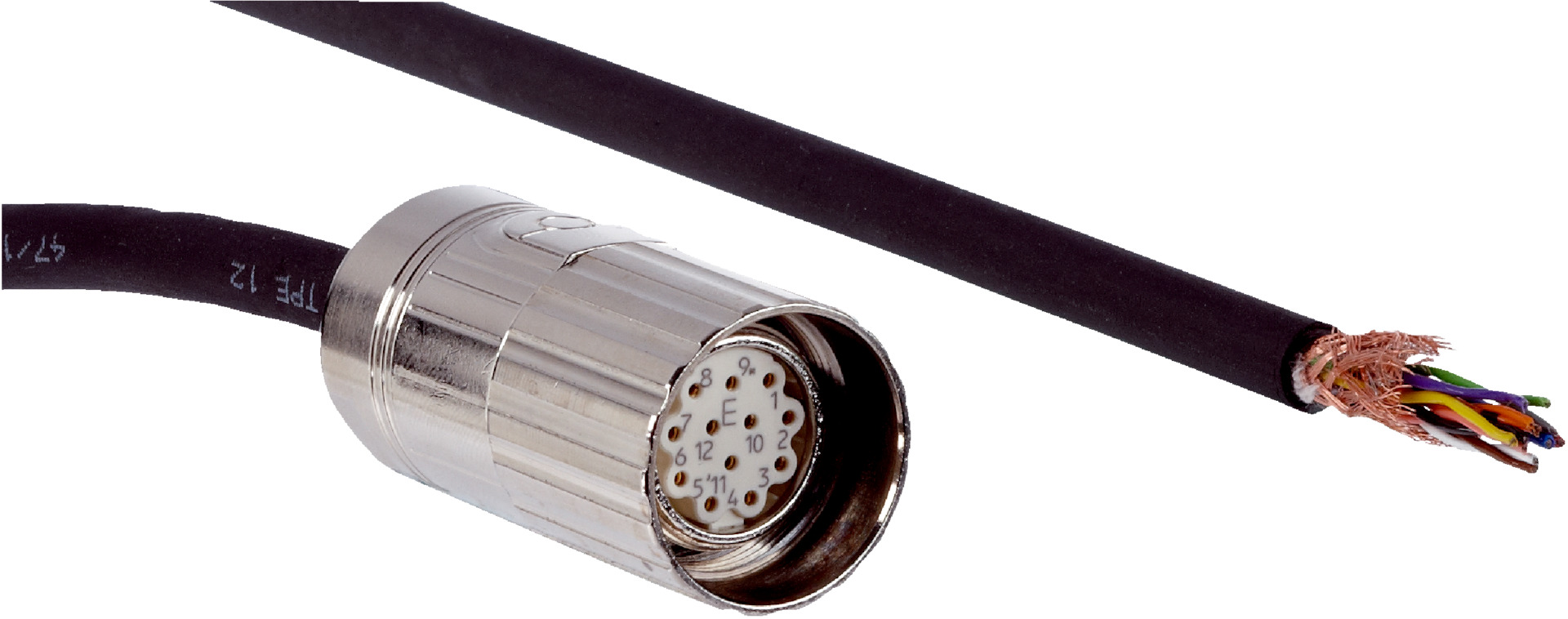

M23 12-Pin Female Connector Cable | 5m PUR Halogen-Free | IP66/IP67 Rated | by SICK
The M23 12-Pin Female Connector Cable is designed for industrial automation, featuring a 5m PUR halogen-free cable with flying leads. With an IP66/IP67 rating for dust and water protection, this cable is perfect for harsh environments, ensuring reliable signal transmission for SSI, RS-422, TTL, and HTL interfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Brass, nickel-plated
- Cable length: 5 m
- Cable type: 12-wire, PUR, halogen-free
- Cable diameter: 7.8 mm
- Conductor cross section: 8 x 0.25 mm² + 2 x 0.5 mm² + 2 x 0.14 mm²
- Shielding: Shielded
- Current loading: 7 A
- Signal type: SSI, RS-422, TTL, HTL
- Enclosure rating: IP66/IP67
- Operating temperature flexible use: -30°C to +90°C
- Operating temperature stationary position: -20°C to +130°C
- Specialty: 76 mm stripped and individually tinned wire ends; 45 mm heat shrink tubing
- Dimensions (H x L x W): 20mm x 5000mm x 20mm
- Weight: 0.3 kg
Key Features
- Female M23, 12-pin straight connector on head A
- Flying leads on head B with 5 m PUR halogen-free cable
- Shielded cable for noise reduction
- High IP66/IP67 enclosure rating for dust and water protection
- Flexible temperature range: -30°C to +90°C (flexible use), -20°C to +130°C (stationary)
- Locking nut made of nickel-plated brass for durability
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Signal transmission for SSI, RS-422, TTL, HTL interfaces
- Harsh environment sensor and actuator connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now
The SICK DOL-2312-G05MHA1 cable assembly is available for immediate purchase, ideal for industrial automation and sensor connection applications.
