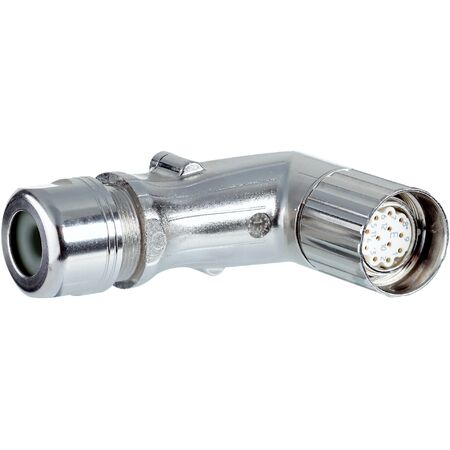

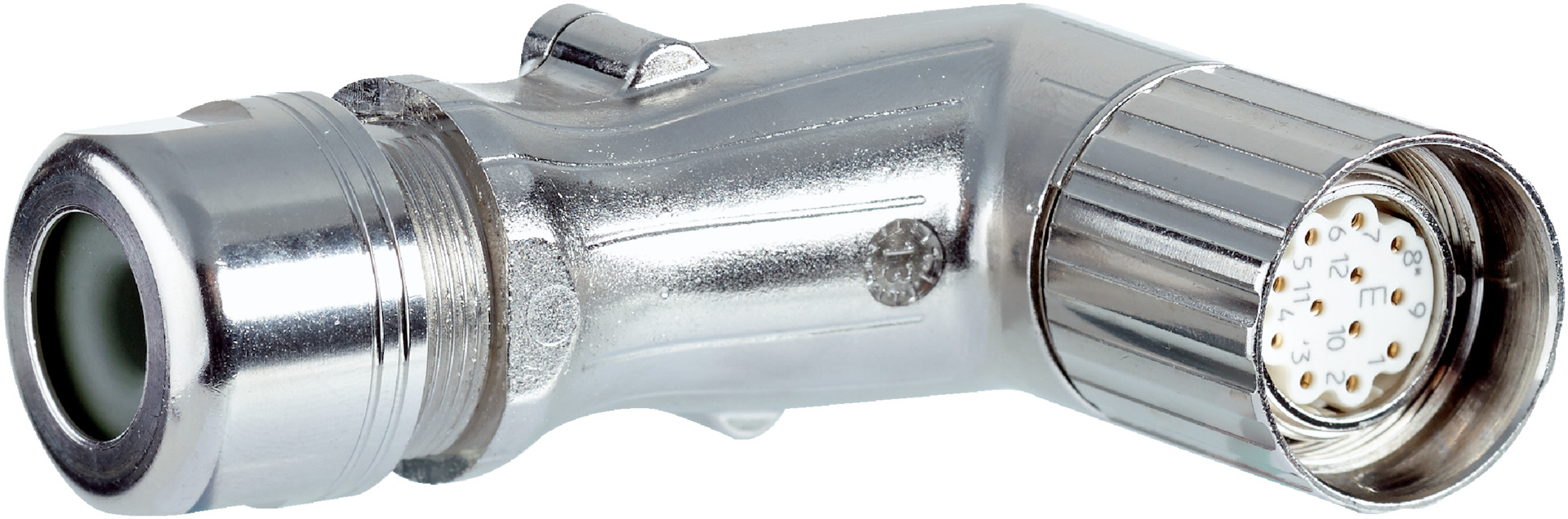

M23 12-Pin Female Connector Cable | Angled A-Coding | Shielded | IP66/IP67 Rated | by SICK
The M23 12-pin female connector cable is designed for reliable connections in industrial automation systems. Featuring an angled A-coded design and quick screw locking for secure connections, this shielded cable ensures optimal data and power transmission in harsh environments. With an IP66/IP67 rating, it withstands dust and water, making it perfect for sensors and actuators in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M23 12-Pin Female Connector Cable | Angled A-Coding | Shielded | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 2072580
Alternatively Known As: M23 12-pin female connector cable, SICK M23 connector, industrial sensor connector cable
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, angled, A-coded
- Connection type: Solder connection
- Locking plug connector: Quick screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Brass, nickel-plated
- Shielding: Shielded
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: HIPERFACE®, SSI, Incremental
- Enclosure rating: IP66/IP67
- Operating temperature: -20 °C to +130 °C
- Dimensions (H x L x W): 30mm x 150mm x 30mm
- Weight: 0.1 kg
Key Features
- Female M23, 12-pin angled connector with A-coding
- Quick screw locking plug connector for secure connections
- Shielded cable for interference protection
- High operating temperature range from -20°C to +130°C
- Current loading capacity of 7 A
- Connector material made of durable TPU with brass nickel-plated locking nut
- Enclosure rating IP66/IP67 for dust and water resistance
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems requiring reliable data and power transmission
- Connection of sensors and actuators in harsh environments
- Use in machinery with high protection requirements (IP66/IP67)
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and shielding reduce electronic waste by extending product lifespan
- Compliance with China RoHS ensures restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DOS-2312-W01 connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
