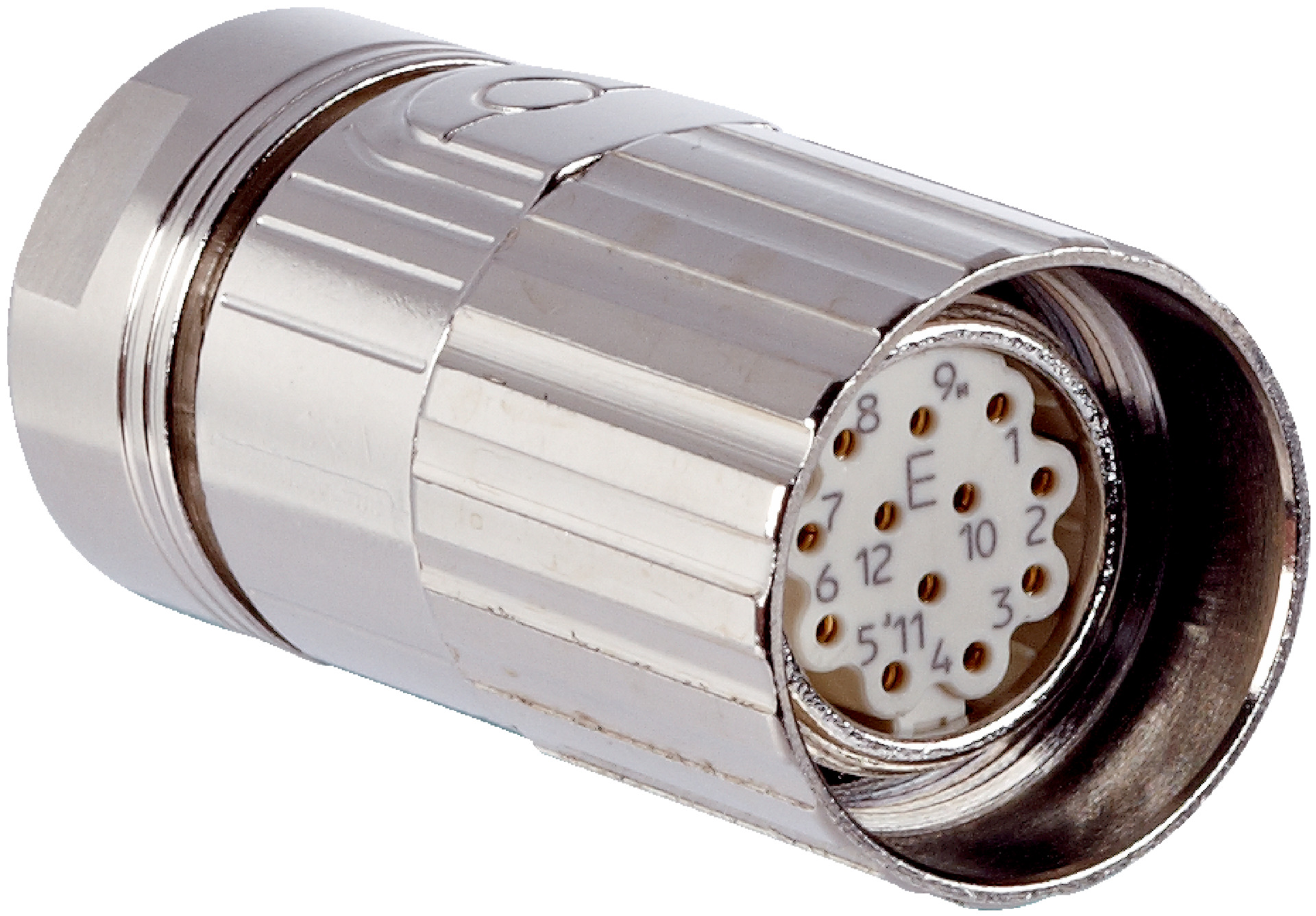

M23 12-Pin Female Connector | Quick Screw Locking | IP66/IP67 Shielded | by SICK
The M23 12-pin female connector is designed for reliable connections in industrial automation and control systems. Featuring a quick screw locking mechanism and a robust zinc die-cast, nickel-plated construction, this connector ensures secure and interference-free signal transmission for sensors and encoders. With an IP66/IP67 rating, it withstands dust and water, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M23 12-Pin Female Connector | Quick Screw Locking | IP66/IP67 Shielded | by SICK
Brand: SICK
SKU: 2071778
Alternatively Known As: M23 12-pin female connector, industrial sensor connector, quick screw locking connector
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight, A-coded
- Connection type: Solder connection
- Locking plug connector: Quick screw connection
- Connector material: Zinc die-cast, nickel-plated
- Locking nut material: Nickel-plated brass
- Shielding: Shielded
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: HIPERFACE®, SSI, Incremental
- Enclosure rating: IP66/IP67
- Operating temperature: -20 °C to +130 °C
- Dimensions (H x L x W): 30mm x 60mm x 30mm
- Weight: 0.1 kg
Key Features
- Female M23, 12-pin straight connector with A-coding
- Quick screw locking plug connector for secure connections
- Zinc die-cast, nickel-plated connector and nickel-plated brass locking nut
- Shielded design for interference protection
- High operating temperature range from -20°C to +130°C
- Enclosure rating IP66/IP67 for dust and water resistance
- Supports signal types HIPERFACE®, SSI, Incremental
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper soldering and secure locking for reliable operation.
Applications
- Industrial automation and control systems
- Signal transmission for sensors and encoders
- Robotics and machinery requiring reliable electrical connections
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials and shielding reduce electronic waste by extending product lifespan
- High IP rating protects against environmental damage, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

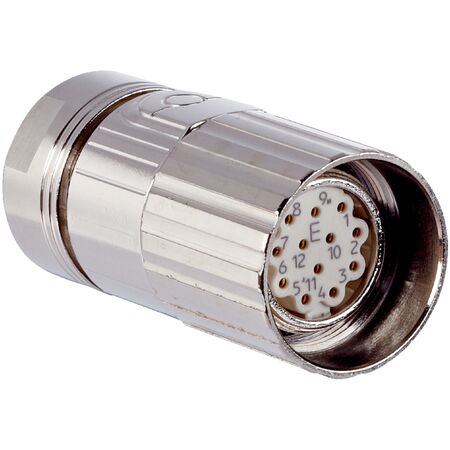

The SICK DOS-2312-GS02 connector is available for immediate purchase, ideal for industrial automation and sensor connection applications.
