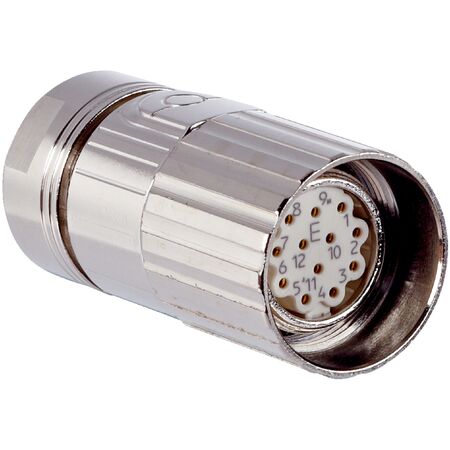

M23 12-Pin Female Connector | Quick Screw Locking | Shielded Design | IP66/IP67 Rated | by SICK
The M23 12-pin female connector is designed for reliable connections in industrial automation systems, featuring a quick screw locking mechanism and a shielded design to minimize electromagnetic interference. With an IP66/IP67 enclosure rating, it ensures durability in harsh environments, making it ideal for sensor and actuator connections in robotics and machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M23 12-Pin Female Connector | Quick Screw Locking | Shielded Design | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 6027538
Alternatively Known As: M23 12-pin female connector, M23 industrial connector, quick screw M23 connector, shielded M23 connector
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight, A-coded
- Connection type: Solder connection
- Locking plug connector: Quick screw connection
- Connector material: Zinc die-cast, nickel-plated
- Locking nut material: Zinc die-cast, nickel-plated
- Shielding: Shielded
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: HIPERFACE®, SSI, Incremental
- Enclosure rating: IP66/IP67
- Operating temperature: -20 °C to +130 °C
- Dimensions (H x L x W): 40mm x 70mm x 40mm
- Weight: 0.2 kg
Key Features
- Female M23, 12-pin straight connector with A-coding
- Quick screw locking plug connector for secure connections
- Zinc die-cast, nickel-plated connector and locking nut for durability
- Shielded design to reduce electromagnetic interference
- High enclosure rating of IP66/IP67 for dust and water protection
- Supports signal types HIPERFACE®, SSI, and Incremental
- Operating temperature range from -20°C to +130°C
- Current loading capacity of 7 A
- Reference voltage up to 160 V
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper soldering and secure connection for optimal performance and safety.
Applications
- Industrial automation systems
- Sensor and actuator connections
- Data transmission in harsh environments
- Robotics and machinery requiring reliable signal connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel-plated zinc die-cast material extends product lifespan, reducing waste
- Shielded design minimizes electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DOS-2312-G M23 12-pin female connector is available for immediate purchase, ideal for industrial automation and sensor connection applications.
