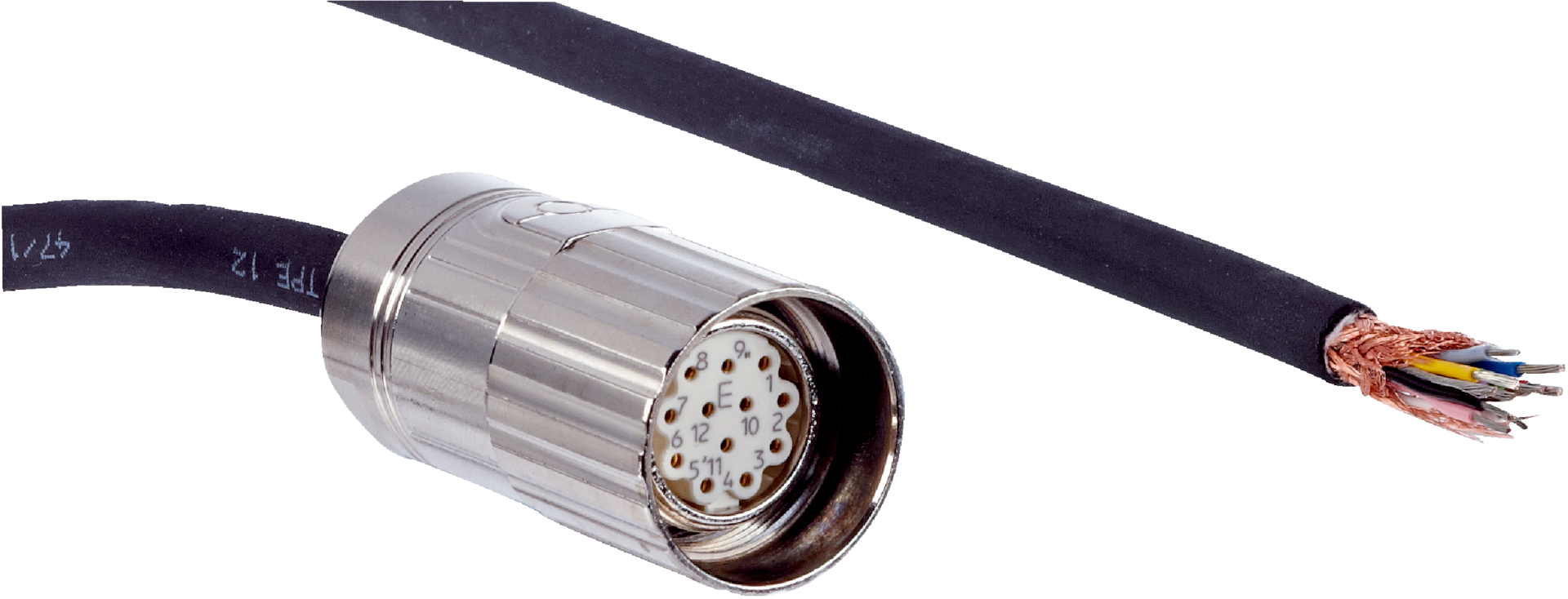

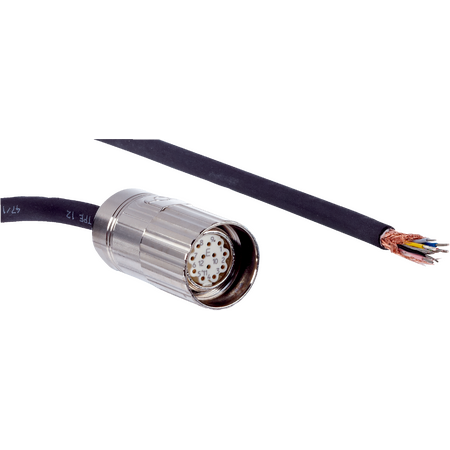

M23 12-Pin Sensor Cable | Shielded | 10m PUR Jacket | IP66/IP67 Rated | by SICK
The M23 12-Pin Sensor Cable is designed for reliable signal transmission in industrial automation. Featuring a shielded design and a durable 10m PUR jacket, this cable is perfect for environments with oils and lubricants. With an IP66/IP67 rating, it ensures protection against dust and water, making it ideal for harsh conditions. The female connector and flying leads provide flexible installation options, ensuring optimal performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Incremental sensor cable, M23 12-pin sensor cable, Shielded sensor cable, PUR jacketed sensor cable
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable wires: 11-wire PUR jacket
- Cable diameter: 7.5 mm
- Conductor cross section: 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 1 x 0.14 mm²
- Shielding: Shielded
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature stationary position: -30°C to +110°C
- Operating temperature head: -20°C to +130°C
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: Incremental
- Enclosure rating: IP66/IP67
- Dimensions (H x L x W): 20mm x 10000mm x 20mm
- Weight: 0.5 kg
Key Features
- Female M23 12-pin straight connector on head A
- Flying leads on head B for flexible connection
- Zinc die-cast, nickel-plated locking nut for durability
- 10 m PUR jacketed cable with 11 wires
- Shielded cable for signal integrity
- High bending radius for cable longevity
- Operating temperature range: -30°C to +110°C (stationary), -20°C to +130°C (head)
- Current loading capacity of 7 A
- Reference voltage up to 160 V
- Enclosure rating IP66/IP67 for dust and water protection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor cabling and electrical safety standards.
Applications
- Industrial automation zones with oils and lubricants
- Environments requiring shielded incremental signal transmission
- Use in harsh conditions with IP66/IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Shielded cable reduces electromagnetic interference, improving energy efficiency in signal transmission
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DOL-2312-G10MLA3 sensor cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
