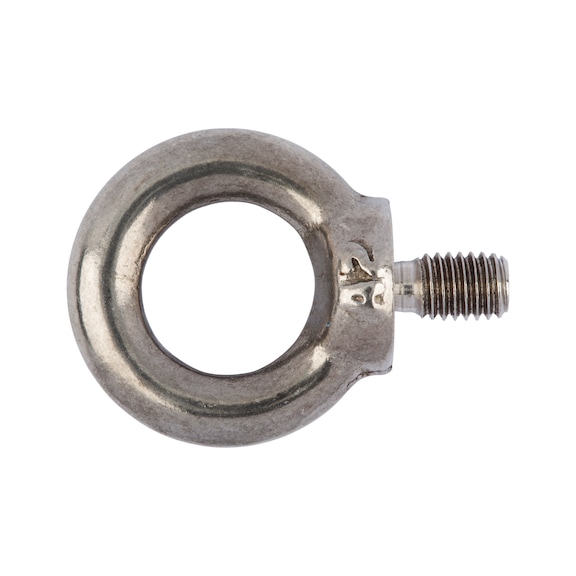

M24 Stainless Steel Lifting Eye Bolt | 1800 kg Load Capacity | DIN 580 Compliant | Plain Surface Finish | by Wurth
The M24 Stainless Steel Lifting Eye Bolt is engineered for industrial lifting and rigging, boasting a maximum load capacity of 1800 kg. Crafted from durable stainless steel A4, it ensures corrosion resistance and complies with DIN 580 standards, making it perfect for construction and heavy machinery applications. With a plain surface finish, this eye bolt is designed for secure and safe lifting operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread type x nominal diameter (d1): M24
- Diameter of contact surface (d2): 50 mm
- Outer diameter (d3): 90 mm
- Internal diameter (d4): 50 mm
- Height (h1): 90 mm
- Length (l1): 36 mm
- Standards: DIN 580
- Material: Stainless steel A4
- Surface: Plain
- Max. load capacity: 1800 kg
- Head type: With lifting eye
- Thread type: Metric thread
- Pitch: 3 mm
- Thread form: Standard metric thread
- Thread length (metric thread): 30 mm
- RoHS-compliant: Yes
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 90mm x 36mm x 90mm
- Weight: 1.2 kg
Key Features
- Made from stainless steel A4 for corrosion resistance
- Complies with DIN 580 standard
- Max load capacity of 1800 kg
- Metric thread M24 with 3 mm pitch
- Plain surface finish
- RoHS-compliant and CE certified
Professional Installation Requirements
- Installation should be performed by trained personnel following safety guidelines to ensure secure and safe lifting operations.
Applications
- Industrial lifting and rigging
- Construction and heavy machinery
- Material handling and transport
Standards & Compliance
- AS/NZS 1252 – High tensile fasteners
Environmental Benefits
- Made from durable stainless steel to ensure long service life and reduce replacement frequency
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth M24 Stainless Steel Lifting Eye Bolt is available for immediate purchase, ideal for industrial and construction lifting applications.
