M25 Cable Gland | IP66/68 Ingress Protection | Barrier Epoxy Seal & Corrosion-Resistant by Cabac

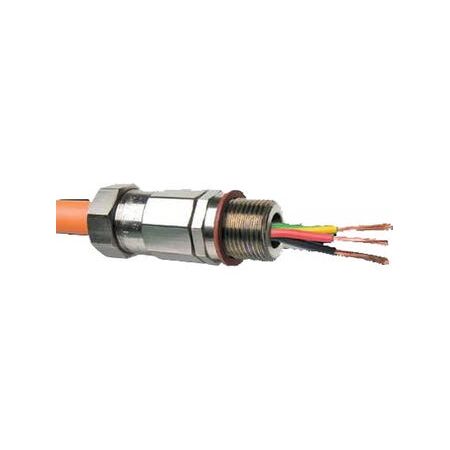

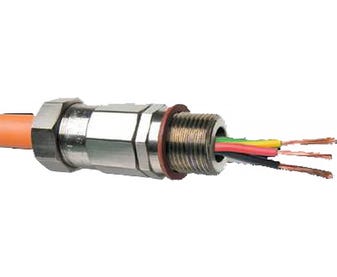

The M25 X 1.5 Nicote FLPW Barrier Cable Gland by Cabac is designed for steel wire armoured cables in hazardous areas, providing a secure barrier epoxy seal and corrosion-resistant nickel-plated brass construction. Rated IP66/68 for indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M25 X 1.5 NICOTE BARRIER CABLE GLAND
Brand: Cabac
SKU: FLPW256B
Alternatively Known As: Nicote FLPW Barrier Gland, M25 Cable Gland, SWA Barrier Gland, Hazardous Area Cable Gland
Technical Specifications
- Material: Nickel-plated brass components
- Ingress Protection: IP66/68 (30m)
- Protection Class: Ex d I/IIC
- Compliance: ANZEx 11.2001X, IECEx SIM 11.0002X, IEC 60079-0:2004, IEC 60079-1:2007, IEC 61241-0:2004, IEC 61241-1:2004
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.2 kg
Key Features
- Barrier epoxy seal provides secure sealing for cable cores
- Armour clamp and outer sheath seal secure the armour and sheath
- Constructed from corrosion-resistant nickel-plated brass
- Ingress Protection rated IP66/68 (30m)
Professional Installation Requirements
- Installation should be performed by a qualified professional experienced with hazardous area electrical equipment to ensure compliance and safety.
Applications
- Use with steel wire armoured (SWA) cables in hazardous environments
- Suitable for indoor and outdoor hazardous area installations
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel-plated brass construction reduces need for frequent replacements
- Seals prevent ingress of dust and water, protecting electrical systems and reducing environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The M25 X 1.5 Nicote FLPW Barrier Cable Gland by Cabac is available for immediate purchase, ideal for hazardous area cable management in industrial and commercial applications.
