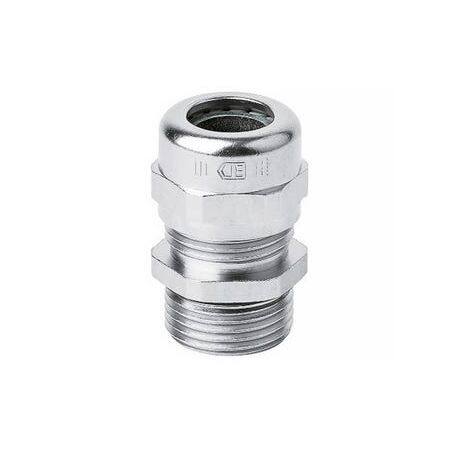

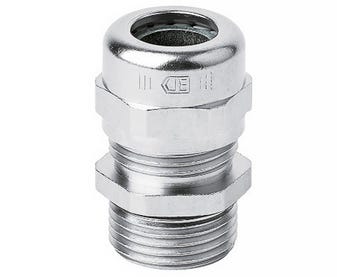

M25 Cable Gland | IP68 Rated | Nickel Plated Brass | 11-17mm Cable OD by Cabac
The Cabac Nickel Plated Brass Gland M25 is an unarmoured metric cable gland designed for sealing and securing PVC, XLPE, and synthetic cables. It features a corrosion-resistant nickel plated brass body, IP68 rating, and a camera shutter style sealing mechanism for a wide cable diameter range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac Nickel Plated Brass Gland M25 Cable OD 11-17mm
Brand: Cabac
SKU: GU25
Alternatively Known As: M25 Cable Gland, Nickel Plated Brass Cable Gland, Metric Cable Gland M25, IP68 Cable Gland, Unarmoured Cable Gland
Technical Specifications
- Conformant Standard: DIN 46 319 (brass glands metric)
- IP Rating: IP68
- Threading: According to IEC 423, IEC 423A and EN 60423
- Chemical Resistance: Resistant to normal organic solvents, mineral, animal and vegetable oils, fat and petrol
- Continuous Operating Temperature: -20 to +100 degrees Celsius
- Strain Relief and Twisting Protection: To DIN VDE 0619
- Body Material: Nickel plated brass
- Insert Material: Polyamide 6 (self-extinguishing)
- Seal Material: Neoprene (self-extinguishing)
- O-ring Material: Neoprene (self-extinguishing)
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.05 kg
Key Features
- Nickel plated brass body for corrosion resistance
- Rated IP68 for superior ingress protection
- Camera shutter style sealing mechanism for wide cable diameter range
- Strain relief and twisting protection rated to DIN VDE 0619
- Polyamide 6 insert and neoprene seals are self-extinguishing
- Chemical resistant to organic solvents, oils, fats, and petrol
- Continuous operating temperature from -20°C to +100°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical safety standards.
Applications
- Sealing and securing PVC, XLPE, and synthetic cables in electrical installations
- Industrial and commercial cable management requiring high ingress protection
- Use in environments exposed to oils, solvents, and varying temperatures
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Chemical resistance minimizes environmental contamination risks
- Self-extinguishing materials enhance safety and reduce fire hazards
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Nickel Plated Brass Gland M25 Cable OD 11-17mm is available now for immediate purchase. Ideal for industrial and commercial cable management applications requiring high ingress protection.
