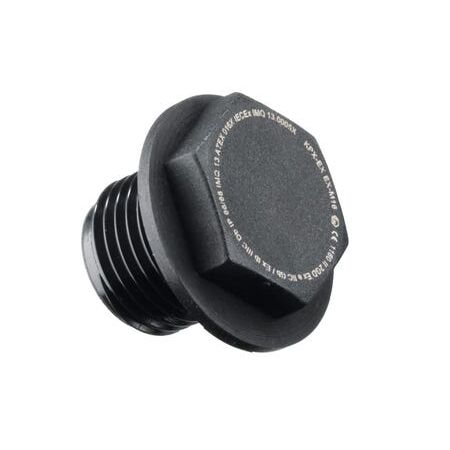

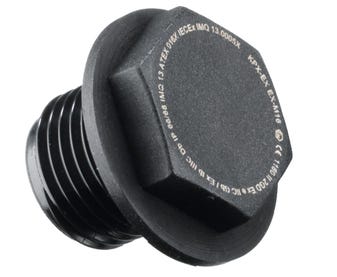

M25 EEXE Stopping Plug | IP66 to IP68 | Durable Nylon | Explosion Proof by Cabac

BRAND: CABAC
SKU: EX-M25
$4.00 List price: $4.80
+ −
30 Days Return Delivery Options
The Cabac M25 EEXE Nylon Stopping Plug provides a reliable sealing solution for hazardous and explosive environments, rated IP66-IP68 and certified to EN/IEC standards for safety and performance.

Product Name/Title: M25 EEXE STOPPING PLUG WITH SEALING

Brand: Cabac

SKU: EX-M25

Alternatively Known As: Nylon Stopping Plug M25, Ex e Stopping Plug, Cable Gland Stopping Plug, Explosion Proof Stopping Plug

Technical Specifications
  • Material: Nylon
  • Operating Temperature Range: -40ºC to +80ºC
  • Ingress Protection: IP66 to IP68 (5 Bar, 30 minutes)
  • Thread Type: Metric (M12, M16, M20, M25, M32, M40, M50, M63)
  • Certifications: EN/IEC 60079-0, 60079-7, 60079-31
  • EC Type Examination: IMQ 13ATEX016X, IECEx IMQ 13.0005X
  • Marking: Ex e IIC Gb, Ex tb IIIC Db
  • Dimensions (H x L x W): 25mm x 40mm x 25mm
  • Weight: 0.05 kg
Key Features
  • Made from durable nylon material
  • Operating temperature range from -40ºC to +80ºC
  • Ingress protection rated IP66 to IP68 (5 Bar, 30 minutes)
  • Metric thread sizes available from M12 to M63
  • Supplied with a flat washer to ensure IP protection
  • Certified to EN/IEC 60079-0, 60079-7, 60079-31 standards
  • EC Type Examination: IMQ 13ATEX016X, IECEx IMQ 13.0005X
  • Marked Ex e IIC Gb and Ex tb IIIC Db for explosive atmospheres
Professional Installation Requirements
  • Installation should be performed by a qualified professional familiar with hazardous area equipment and compliance requirements.
Applications
  • Use in hazardous and explosive environments including Zones 1, 2, 21, and 22
  • Suitable for Ex e applications requiring reliable sealing
  • Ideal for cable and wire management in industrial and explosive atmospheres
Standards & Compliance
  • AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
  • Durable nylon construction extends product life reducing waste
  • High ingress protection prevents environmental contamination
  • Supports safe operation in hazardous environments minimizing risk of leaks or failures
Warranty Information

Standard manufacturer warranty against defects applies; please refer to Cabac warranty terms.

Available Now

The Cabac M25 EEXE Nylon Stopping Plug with Sealing is available for immediate purchase, ideal for use in hazardous and explosive industrial environments.
