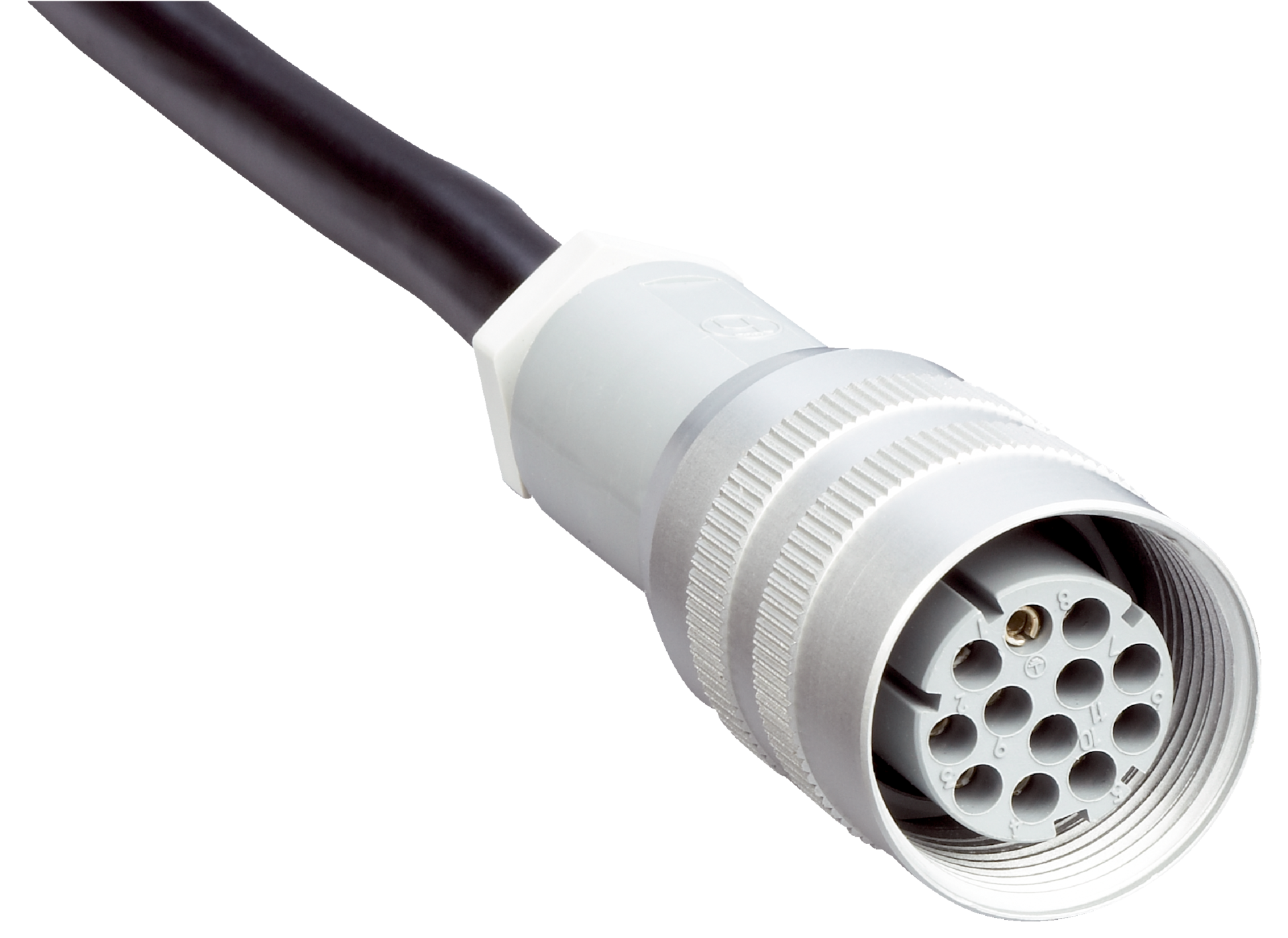

M26 12-Pin Sensor Actuator Cable | 20m Length | IP65 Rated | by SICK
The M26 12-Pin Sensor Actuator Cable is designed for reliable industrial automation connections, featuring a 20m length and a durable PVC jacket. With an IP65 rating, it offers protection against dust and water, making it ideal for use in uncontaminated zones and areas with chemicals. This cable is perfect for both flexible and stationary applications, ensuring optimal performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable, Actuator cable, M26 12-pin cable, Industrial sensor connector cable
Technical Specifications
- Connection type head A: Female connector, M26, 12-pin, straight
- Connection type head B: Flying leads
- Connector material: PET
- Connector color: Gray, silver
- Cable: 20 m, 12-wire, PVC
- Jacket material: PVC
- Jacket color: Black
- Cable diameter: 10 mm
- Conductor cross section: 0.75 mm²
- Shielding: Unshielded
- Reference voltage: ≤ 60 V AC/DC
- Current loading: 5 A
- Signal type: Sensor/actuator cable
- Application: Uncontaminated zones, Zones with chemicals
- Enclosure rating: IP65 (EN 60529)
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –40 °C to +90 °C
- Dimensions (H x L x W): 10mm x 20000mm x 10mm
- Weight: 0.5 kg
Key Features
- Female connector, M26, 12-pin, straight
- 20 m length, 12-wire PVC cable
- Unshielded cable with 0.75 mm² conductor cross section
- IP65 rated enclosure for protection against dust and water
- Operating temperature range suitable for flexible and stationary use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Use in uncontaminated zones and zones with chemicals
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC jacket and connector materials ensure long service life reducing waste
- Compliant with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DOL-0612G20M075KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
