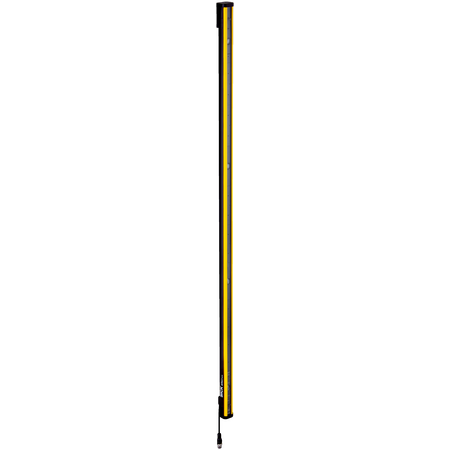

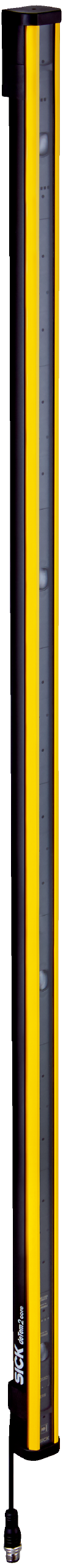

M2C-EA04300A10 | Safety light-beam sensors
The SICK M2C-EA04300A10 is a Type 2 safety light-beam sensor receiver designed for industrial safety applications, featuring 4 beams, optical synchronization, and robust IP65/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M2C-EA04300A10 | Safety light-beam sensors
Brand: SICK
SKU: 1085570
Alternatively Known As: Safety light beam sensor receiver, industrial safety sensor, optical safety sensor, safety light curtain receiver
Technical Specifications
- Product version: deTem2 Core
- Functional principle: Sender/receiver
- Number of beams: 4
- Beam separation: 300 mm
- Response time: 20 ms
- Synchronization: Optical synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 3 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Flexi Loop compatible M12 male connector
- Permitted cable length: 50 m
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 10%
- Power consumption: ≤ 4.32 W
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state switching voltage: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible use: > 15 x cable diameter
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Class: 3M4 (IEC TR 60721-4-3)
- Dimensions (H x L x W): 34mm x 100mm x 31mm
- Weight: 0.88 kg
Key Features
- 4 beam safety light sensor with 300 mm beam separation
- Optical synchronization for reliable operation
- Type 2 safety according to IEC 61496-1
- Safety integrity level SIL 1 (IEC 61508)
- Category 2 safety (ISO 13849-1) with Performance Level PL c
- Short response time of 20 ms
- IP65 and IP67 rated enclosure for harsh environments
- LED display elements for status indication
- M12 5-pin plug system connection with Flexi Loop compatibility
- Short-circuit protected PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Industrial safety monitoring in normal industrial environments
- Machine safeguarding and access control
- Automation and manufacturing process safety
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of ≤4.32 W reduces energy use
- Robust IP65/IP67 rating protects against environmental damage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK M2C-EA04300A10 Safety Light-Beam Sensor Receiver is available for immediate purchase, ideal for industrial safety and automation applications.
