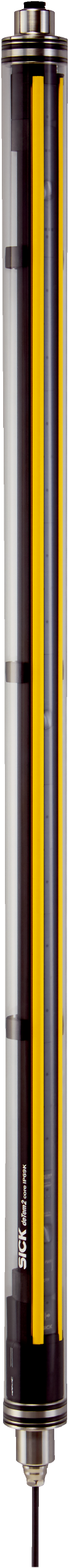

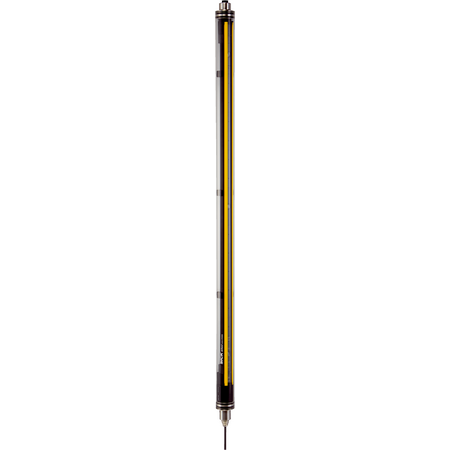

M2C-EB03400A10 | Safety light-beam sensors
The SICK M2C-EB03400A10 safety light-beam sensor receiver features IP69K protection and is designed for areas with special hygiene requirements, offering reliable and precise safety monitoring with a scanning range up to 15.5 meters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M2C-EB03400A10 | Safety light-beam sensors
Brand: SICK
SKU: 1089987
Alternatively Known As: Safety light beam sensor receiver, IP69K light curtain sensor, industrial safety sensor, deTem2 Core sensor receiver
Technical Specifications
- Product version: deTem2 Core IP69K
- Functional principle: Sender/receiver
- System part: Receiver
- Scanning range: Typical 0.5 m to 15.5 m
- Number of beams: 3
- Beam separation: 400 mm
- Response time: 20 ms
- Synchronization: Optical synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 3 x 10^-9
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- System connection: 5-wire connecting cable, 15 m length, 5 mm diameter, PUR halogen-free
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 4.32 W
- Output signal: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing diameter: 50 mm
- Housing material: PMMA with stainless steel 1.4404 end caps and cable glands
- Operating temperature: -30 °C to +55 °C
- Enclosure rating: IP65, IP66, IP67, IP69K
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 2.2 kg
Key Features
- deTem2 Core IP69K product version for high hygiene environments
- Low scanning range with typical 15.5 m scanning distance
- 3 beams with 400 mm beam separation
- Optical synchronization for precise operation
- Receiver system part with IP69K protective housing
- Short response time of 20 ms
- LED display elements for status indication
- Robust stainless steel 1.4404 end caps and cable glands
- Protection class III (IEC 61140)
- Operating temperature range from -30 °C to +55 °C
- High vibration and shock resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Areas with special hygiene requirements
- Industrial safety monitoring
- Machine safeguarding
- Automation systems requiring reliable light-beam sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and PMMA materials ensure long product life reducing waste
- Halogen-free PUR cable material minimizes environmental impact
- Energy-efficient operation with low power consumption (≤ 4.32 W)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK M2C-EB03400A10 safety light-beam sensor receiver is available for immediate purchase, ideal for industrial and hygienic safety applications requiring reliable light-beam detection.
