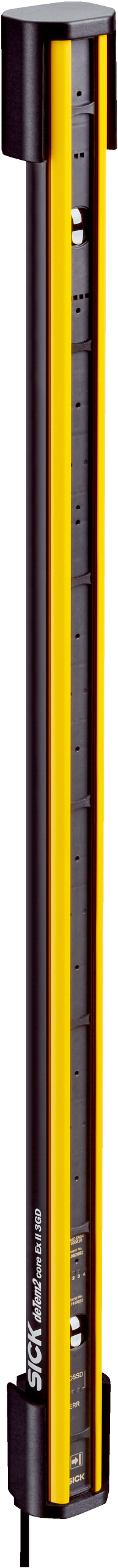

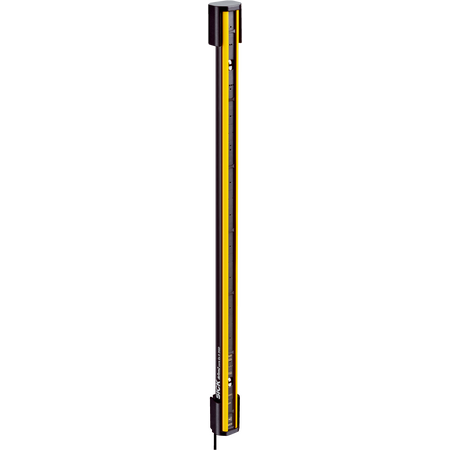

M2C-SX0250LA10 | Safety light-beam sensors
The SICK M2C-SX0250LA10 safety light-beam sensor is designed for use in explosive areas, offering reliable near-infrared detection with robust housing and multiple safety certifications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M2C-SX0250LA10 | Safety light-beam sensors
Brand: SICK
SKU: 1093813
Alternatively Known As: Safety light beam sensor, Explosion-proof light sensor, ATEX light sensor, Near-infrared safety sensor
Technical Specifications
- Product version: deTem2 Core Ex II 3GD
- Application: Explosive areas
- Ex-approvals: ATEX II 3G Ex ec op is IIC T4 Gc, II 3D Ex tc IIIC T135°C Dc
- Functional principle: Sender/receiver
- System part: Sender
- Scanning range: 0.5 m to 17 m
- Number of beams: 2
- Beam separation: 500 mm
- Response time: 20 ms
- Synchronization: Optical synchronization
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 3 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 10%
- Power consumption: ≤ 1.44 W DC
- Housing cross-section: 38.7 mm x 45.6 mm
- Housing material: Aluminum extruded profile
- Weight: 560 g ± 50 g
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Class: 3M4 (IEC TR 60721-4-3)
- Dimensions (H x L x W): 46mm x 100mm x 39mm
- Weight: 0.56 kg
Key Features
- Designed for explosive areas with ATEX and IECEx approvals
- Near-infrared (NIR), invisible light type
- Scanning range from 0.5 m to 17 m with 2 beams and 500 mm beam separation
- Optical synchronization with 20 ms response time
- Plug M12, 5-pin system connection with LED display elements
- Protection class III with power consumption ≤ 1.44 W DC
- Robust aluminum extruded profile housing with IP65 and IP67 enclosure rating
- Operating temperature range 0 °C to +55 °C
- Shock resistance 15 g / 6 ms and vibration resistance 5–150 Hz
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with hazardous area equipment and compliant with relevant safety standards.
Applications
- Safety monitoring in explosive areas
- Industrial automation requiring reliable light-beam sensing
- Hazardous environment detection and control
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low power consumption reduces energy usage
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK M2C-SX0250LA10 safety light-beam sensor is available for immediate purchase, ideal for industrial safety applications in explosive environments.
