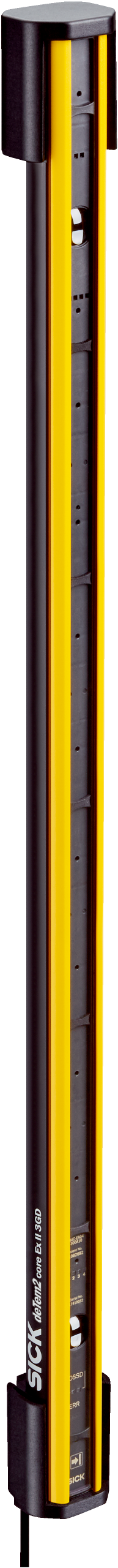

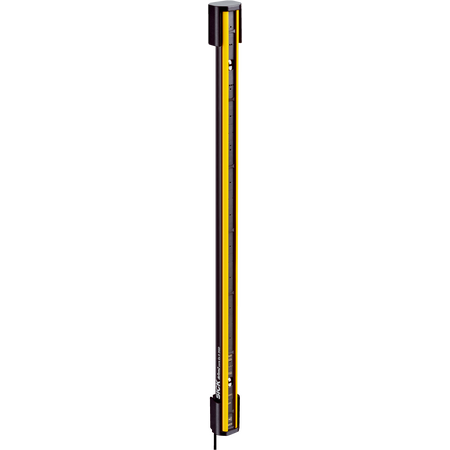

M2C-SX0340LA10 | Safety light-beam sensors
The SICK M2C-SX0340LA10 safety light-beam sensor is designed for use in explosive areas, providing reliable safety monitoring with a scanning range up to 17 meters and robust aluminum housing with IP65/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M2C-SX0340LA10 | Safety light-beam sensors
Brand: SICK
SKU: 1093900
Alternatively Known As: Safety light beam sensor, Safety light curtain, Explosion-proof light sensor, deTem2 Core Ex II 3GD sensor
Technical Specifications
- Product version: deTem2 Core Ex II 3GD
- Application: Explosive areas
- Ex-approvals: ATEX II 3G Ex ec op is IIC T4 Gc, II 3D Ex tc IIIC T135°C Dc
- Functional principle: Sender/receiver
- System part: Sender
- Scanning range: 0.5 m to 17 m
- Number of beams: 3
- Beam separation: 400 mm
- Response time: 20 ms
- Synchronization: Optical synchronization
- System connection: Plug, M12, 5-pin
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 10%
- Power consumption: ≤ 1.44 W
- Housing cross-section: 38.7 mm x 45.6 mm
- Material: Aluminum extruded profile
- Weight: 800 g ± 50 g
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Enclosure rating: IP65 and IP67
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Type of light: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 46mm x 150mm x 39mm
- Weight: 0.8 kg
Key Features
- Designed for explosive areas with ATEX and IECEx approvals
- Three light beams with 400 mm beam separation
- Scanning range from 0.5 m to 17 m
- Optical synchronization for reliable operation
- Response time of 20 ms
- LED display elements for status indication
- Protection class III (IEC 61140)
- Housing made of aluminum extruded profile
- High ingress protection rating IP65 and IP67
- Near-infrared (NIR), invisible light type
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety sensors and explosive area regulations to ensure compliance and safety.
Applications
- Safety monitoring in explosive areas
- Industrial automation requiring safety light-beam sensors
- Hazardous environment detection and protection
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low power consumption of ≤1.44 W reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- High ingress protection minimizes environmental contamination and damage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK M2C-SX0340LA10 safety light-beam sensor is available for immediate purchase, ideal for industrial safety applications in explosive environments.
