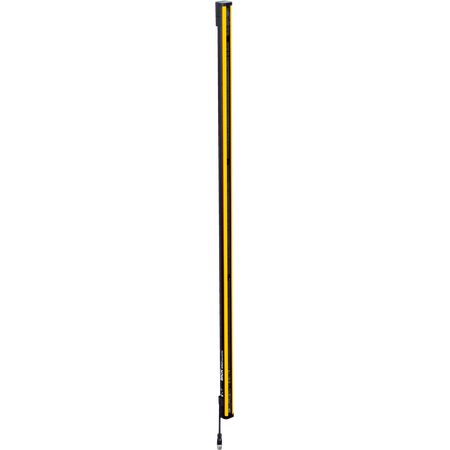

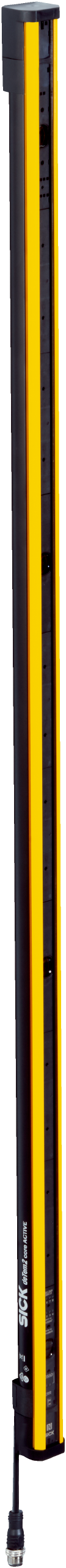

M2C-ZA04300C10 | Safety light-beam sensors
The SICK M2C-ZA04300C10 Safety Light-Beam Sensor is designed for industrial safety applications, providing reliable active/passive light beam detection with high safety integrity and robust environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M2C-ZA04300C10 | Safety light-beam sensors
Brand: SICK
SKU: 1102647
Alternatively Known As: Safety light beam sensor, industrial light curtain sensor, active/passive light sensor, safety beam sensor
Technical Specifications
- Product version: deTem2 Core A/P
- Application: Normal industrial environment
- Functional principle: Active/passive
- System part: Active unit
- Scanning range: 0.5 m to 7 m
- Number of beams: 4
- Beam separation: 300 mm
- Response time: 20 ms
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 5.3 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Display elements: LEDs
- Alignment aid: Diagnostic LEDs and NFC
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: 2.4 W typical
- Output signal: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 500 mA
- Housing: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Weight: 890 g ± 50 g
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 34mm x 100mm x 31mm
- Weight: 0.89 kg
Key Features
- Active/passive functional principle with 4 beams and 300 mm beam separation
- Scanning range from 0.5 m to 7 m
- Response time of 20 ms
- Type 2 safety (IEC 61496-1) with SIL 1 (IEC 61508) and Category 2 (ISO 13849-1)
- Performance level PL c (ISO 13849-1)
- Plug M12, 5-pin system connection with LED diagnostic display and NFC alignment aid
- Protection class III (IEC 61140)
- Power consumption typical 2.4 W at 24 V DC
- Housing made of aluminum extruded profile with polycarbonate scratch-resistant front screen
- Enclosure rating IP65 and IP67 for robust environmental protection
- Operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Industrial safety monitoring in normal industrial environments
- Machine safeguarding and perimeter protection
- Automation and process control requiring active/passive light beam sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK M2C-ZA04300C10 Safety Light-Beam Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
