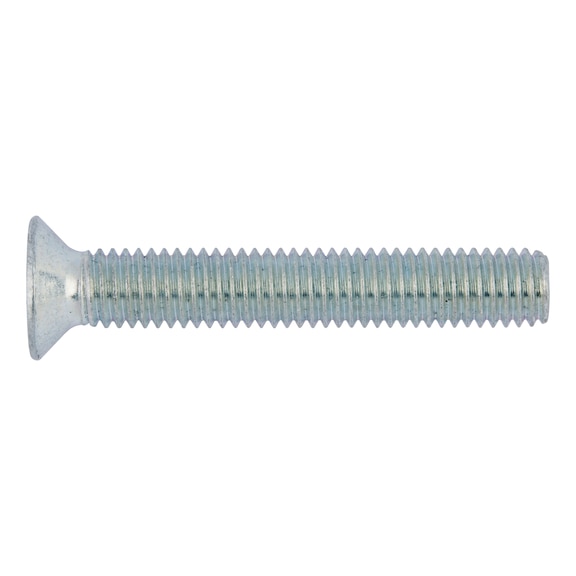

M3 Countersunk Screw | Zinc Plated Steel | DIN 965 Compliant | Crosshead Drive | by Wurth
The M3 Countersunk Screw is designed for reliable fastening in various applications, featuring a zinc-plated steel construction for enhanced corrosion resistance. With a flush surface finish and crosshead drive type, it's perfect for machinery, electronics assembly, and automotive projects. This screw complies with DIN 965 standards and is RoHS-compliant, ensuring safety and environmental responsibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M3 Countersunk Screw | Zinc Plated Steel | DIN 965 Compliant | Crosshead Drive | by Wurth
Brand: Wurth
SKU: 48310
Alternatively Known As: M3 Countersunk Screw, Zinc Plated Metric Screw, Crosshead Machine Screw, DIN 965 Screw
Technical Specifications
- Thread type x nominal diameter (d1): M3
- Length (l1): 10 mm
- Head diameter (dk): 5.6 mm
- Head height (k1): 1.65 mm
- Standards: DIN 965
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Crosshead
- Internal drive: H1
- Thread type: Metric thread
- Pitch: 0.5 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 1.65mm x 10mm x 3mm
- Weight: 0.1 kg
Key Features
- Made from steel with zinc plating for corrosion resistance
- Countersunk head for flush surface finish
- Crosshead drive type for easy installation
- Complies with DIN 965 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson recommended to ensure proper fastening and safety.
Applications
- General fastening applications in machinery and equipment
- Electronics assembly requiring metric screws
- Automotive and industrial equipment assembly
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M3 x 10mm Zinc Plated Steel Countersunk Head Crosshead Screw is available for immediate purchase, ideal for industrial, automotive, and electronic fastening applications.
