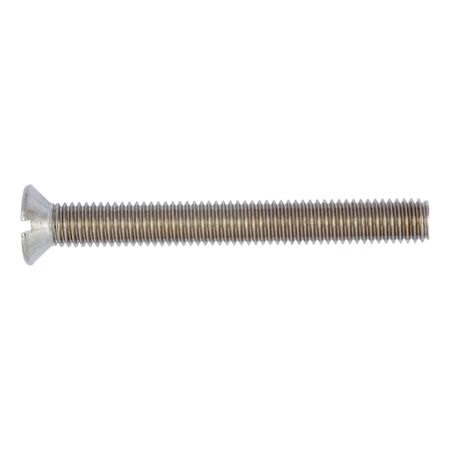

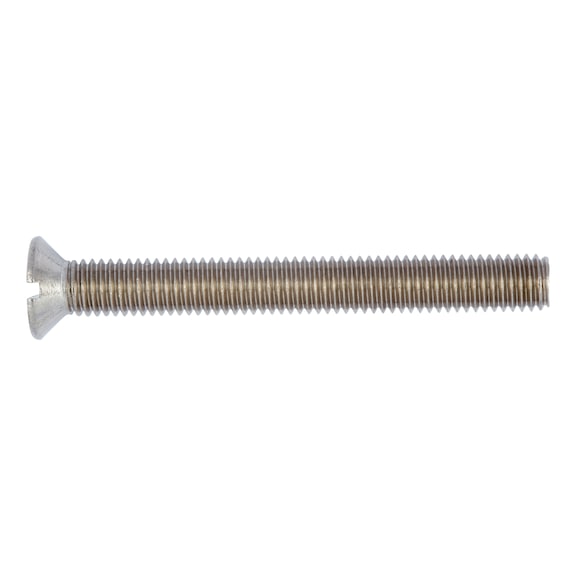

M3 Countersunk Slot Head Bolt | Stainless Steel A2 | DIN 963 Compliant | Corrosion Resistant | by Wurth
The M3 Countersunk Slot Head Bolt is crafted from stainless steel A2, ensuring exceptional corrosion resistance and durability. With a flush-fitting countersunk head and slot drive, it's perfect for general fastening applications in machinery, automotive, and construction. This bolt complies with DIN 963 standards, making it a reliable choice for professionals seeking quality and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M3 Countersunk Slot Head Bolt | Stainless Steel A2 | DIN 963 Compliant | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 286325
Alternatively Known As: M3 Countersunk Slot Head Bolt, Stainless Steel Metric Bolt, DIN 963 Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M3
- Length (l1): 25 mm
- Head diameter (dk): 5.6 mm
- Head height (k1): 1.65 mm
- Standards: DIN 963
- Material: Stainless steel A2
- Property class: 70
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Countersunk head
- Drive type: Slot
- Internal drive: Slot
- Thread type: Metric thread
- Pitch: 0.5 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 1.65mm x 25mm x 5.6mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A2 for corrosion resistance
- Countersunk head with slot drive for flush fitting
- Complies with DIN 963 standard
- RoHS-compliant material
- Metric thread with 0.5 mm pitch
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening integrity.
Applications
- General fastening applications in machinery and equipment
- Use in environments requiring corrosion resistance
- Suitable for assembly in automotive, electronics, and construction
Standards & Compliance
- AS/NZS 4762 – High-Strength Steel Fasteners
Environmental Benefits
- Stainless steel material is recyclable and durable, reducing replacement frequency and waste.
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
The Wurth M3 x 25mm Stainless Steel Countersunk Slot Head Bolt is available for immediate purchase, ideal for precision fastening in industrial and commercial applications.
