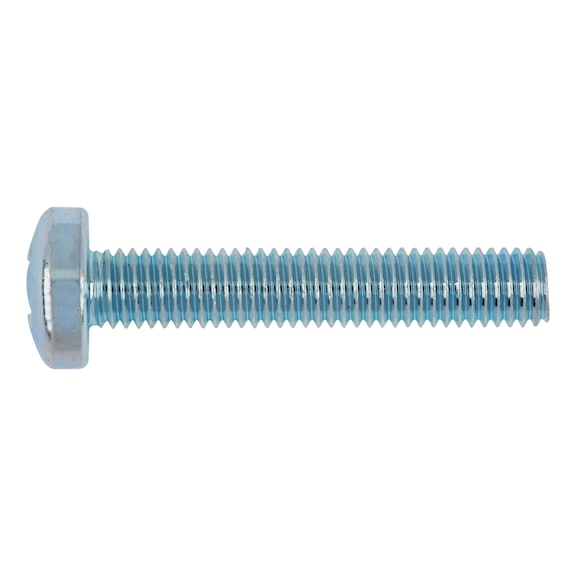

M3 Pan Head Screw | Zinc Plated Steel | Crosshead Drive | DIN 7985 Standard | by Wurth
The M3 Pan Head Screw is designed for reliable fastening in various applications, featuring a zinc plated steel construction for enhanced corrosion resistance. With a crosshead drive and a property class of 4.8, this screw is perfect for general fastening in machinery, electronics assembly, and lightweight structural applications. RoHS-compliant, it ensures environmental safety while providing moderate strength for your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M3 Pan Head Screw | Zinc Plated Steel | Crosshead Drive | DIN 7985 Standard | by Wurth
Brand: Wurth
SKU: 4636
Alternatively Known As: M3 Pan Head Screw, Zinc Plated Metric Screw, Crosshead Machine Screw, DIN 7985 Screw
Technical Specifications
- Thread type x nominal diameter (d1): M3
- Length (l1): 6 mm
- Head diameter (dk): 6 mm
- Head height (k1): 2.4 mm
- Standards: DIN 7985
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: Crosshead
- Internal drive: H1
- Thread type: Metric thread
- Pitch: 0.5 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.4mm x 6mm x 6mm
- Weight: 0.1 kg
Key Features
- Steel material with zinc plating for corrosion resistance
- Pan head design with crosshead drive for easy installation
- Metric thread M3 with 0.5 mm pitch
- Property class 4.8 for moderate strength applications
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- General fastening applications in machinery and equipment
- Electronics assembly requiring metric screws
- Lightweight structural fastening in metal and plastic components
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances in manufacturing and disposal
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth M3 x 6mm Zinc Plated Steel Pan Head Crosshead Screw is available for immediate purchase, ideal for general fastening applications in industrial and commercial settings.
