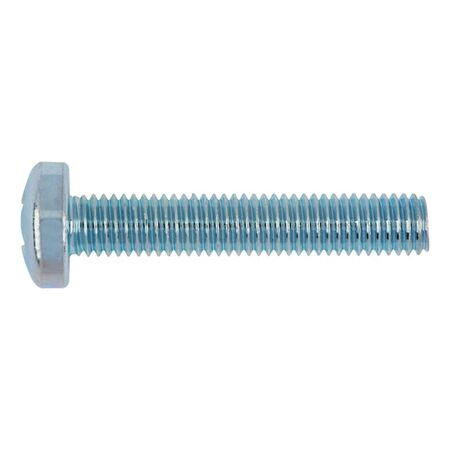

M3 Pan Head Screw | Zinc Plated Steel | DIN 7985 Compliant | Crosshead Drive | by Wurth
The M3 Pan Head Screw is crafted from zinc plated steel, ensuring corrosion resistance and durability. With a pan head design and crosshead drive, it allows for easy installation in various applications, including machinery, electronics assembly, and automotive equipment. This screw complies with DIN 7985 standards and is RoHS-compliant, making it a reliable choice for both professional and DIY projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M3 Pan Head Screw | Zinc Plated Steel | DIN 7985 Compliant | Crosshead Drive | by Wurth
Brand: Wurth
SKU: 4638
Alternatively Known As: M3 Pan Head Screw, Zinc Plated Metric Screw, Crosshead Machine Screw
Technical Specifications
- Thread type x nominal diameter (d1): M3
- Length (l1): 8 mm
- Head diameter (dk): 6 mm
- Head height (k1): 2.4 mm
- Standards: DIN 7985
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: Crosshead
- Internal drive: H1
- Thread type: Metric thread
- Pitch: 0.5 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.4mm x 8mm x 6mm
- Weight: 0.1 kg
Key Features
- Steel material with zinc plating for corrosion resistance
- Pan head design with crosshead drive for easy installation
- Complies with DIN 7985 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- General fastening applications in machinery and equipment
- Electronics assembly requiring metric screws
- Automotive and industrial equipment assembly
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M3 x 8mm Zinc Plated Steel Pan Head Crosshead Screw is available for immediate purchase, ideal for industrial, automotive, and general fastening applications.
