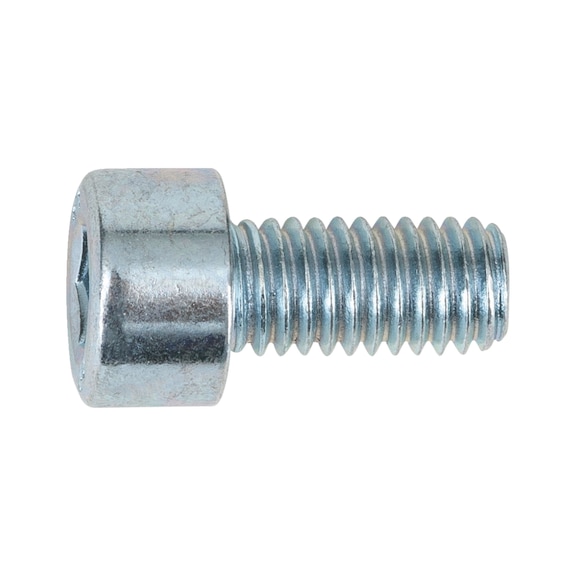

M3 Socket Head Cap Screw | Zinc Plated Steel | Property Class 8.8 | Hexagon Socket Drive | by Wurth
The M3 Socket Head Cap Screw is crafted from high-strength steel with a property class of 8.8, ensuring secure fastening for mechanical assemblies. Its zinc plated surface provides excellent corrosion resistance, making it ideal for industrial machinery and automotive applications. Designed for use with a hexagon socket drive, this bolt guarantees reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M3 Socket Head Cap Screw | Zinc Plated Steel | Property Class 8.8 | Hexagon Socket Drive | by Wurth
Brand: Wurth
SKU: 847330
Alternatively Known As: M3 Socket Head Cap Screw, Hex Socket Bolt M3, Metric Socket Head Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M3
- Length (l1): 30 mm
- Head diameter (dk): 5.5 mm
- Head height (k1): 3 mm
- Standards: ISO 4762
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Socket head
- Drive type: Hexagon socket
- Internal drive: HS2.5
- Thread type: Metric thread
- Pitch: 0.5 mm
- Thread form: Standard metric thread
- Thread design: Full thread
- Thread length (metric thread): 30 mm
- Product class: A
- Dimensions (H x L x W): 3mm x 30mm x 5.5mm
- Weight: 0.1 kg
Key Features
- Made from high-strength steel with property class 8.8
- Zinc plated surface for corrosion resistance
- Socket head with hexagon internal drive (HS2.5) for secure tightening
- Full metric thread with pitch 0.5 mm
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Industrial machinery and equipment
- Automotive and electronic device assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M3 x 30mm Zinc Plated Steel Socket Head Bolt is available for immediate purchase, ideal for industrial and mechanical fastening applications.
