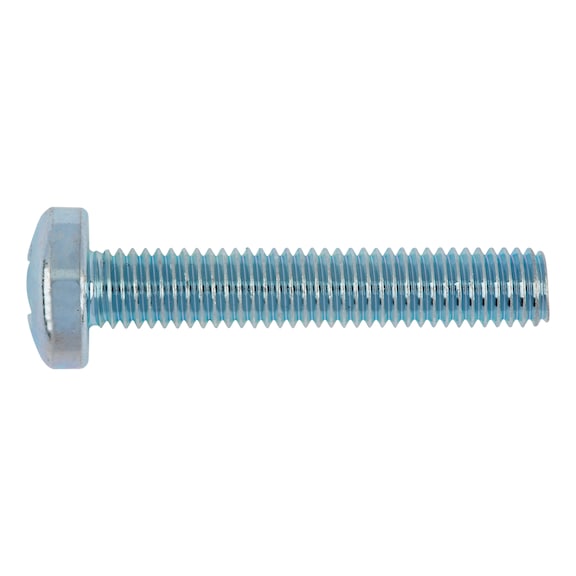

M3 x 30mm Pan Head Screw | Zinc Plated Steel | DIN 7985 Compliant | Crosshead Drive | by Wurth
The M3 x 30mm Pan Head Screw is crafted from zinc plated steel, ensuring corrosion resistance and durability. Designed for general fastening applications in machinery, electronics, and construction, this screw features a pan head with a crosshead drive for easy installation. Complying with DIN 7985 standards and RoHS regulations, it’s perfect for both metal and plastic assemblies requiring metric thread bolts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M3 x 30mm Pan Head Screw | Zinc Plated Steel | DIN 7985 Compliant | Crosshead Drive | by Wurth
Brand: Wurth
SKU: 46330
Alternatively Known As: M3 x 30mm Pan Head Screw, Zinc Plated Metric Bolt, Crosshead Machine Screw
Technical Specifications
- Thread type x nominal diameter (d1): M3
- Length (l1): 30 mm
- Head diameter (dk): 6 mm
- Head height (k1): 2.4 mm
- Standards: DIN 7985
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: Crosshead
- Internal drive: H1
- Thread type: Metric thread
- Pitch: 0.5 mm
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.4mm x 30mm x 6mm
- Weight: 0.1 kg
Key Features
- Steel material with zinc plating for corrosion resistance
- Pan head with crosshead drive for easy installation
- Complies with DIN 7985 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson recommended to ensure proper torque and fastening integrity.
Applications
- General fastening applications in machinery, electronics, and construction
- Suitable for use in metal and plastic assemblies requiring metric thread bolts
Standards & Compliance
- AS/NZS 4785 – Metric fasteners for general engineering
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M3 x 30mm Zinc Plated Steel Pan Head Crosshead Bolt is available for immediate purchase, ideal for industrial, construction, and general fastening applications.
