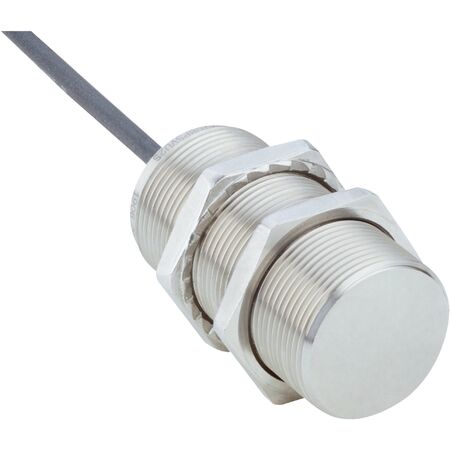

M30 Inductive Proximity Sensor | IP68 & IP69K Rated | PNP NO Output | Stainless Steel | by SICK
The M30 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a robust IP68 and IP69K enclosure rating for harsh environments. With a high switching frequency of 50 Hz and a sensing range of 10 mm, this sensor is perfect for flush mounting in machinery and equipment, ensuring durability against coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 50 Hz
- Cable: 3-wire, 2 m length, PUR material, 0.34 mm² conductor size
- Voltage drop: ≤ 2 V
- No load current: ≤ 10 mA
- Continuous current: ≤ 200 mA
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Protection class: III
- Enclosure rating: IP68, IP69K
- Shock resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread length: 55.8 mm
- Housing length: 60.3 mm
- Tightening torque max: ≤ 100 Nm
- EMC: According to EN 60947-5-2
- MTTFD: 1,892 years
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.2 kg
Key Features
- Metric M30 x 1.5 thread size with Ø 30 mm diameter
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Flush installation type with stainless steel V2A sensing face
- High switching frequency of 50 Hz with PNP NO output
- Cable connection, 3-wire, 2 m length with PUR cable material
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and difficult application conditions
- Shock and vibration resistant with high mechanical durability
- Short-circuit and power-up pulse protection included
- Wide ambient operating temperature from -25 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Harsh environments with coolants and lubricants
- Flush mounting in machinery and equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMI30-10BPSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
