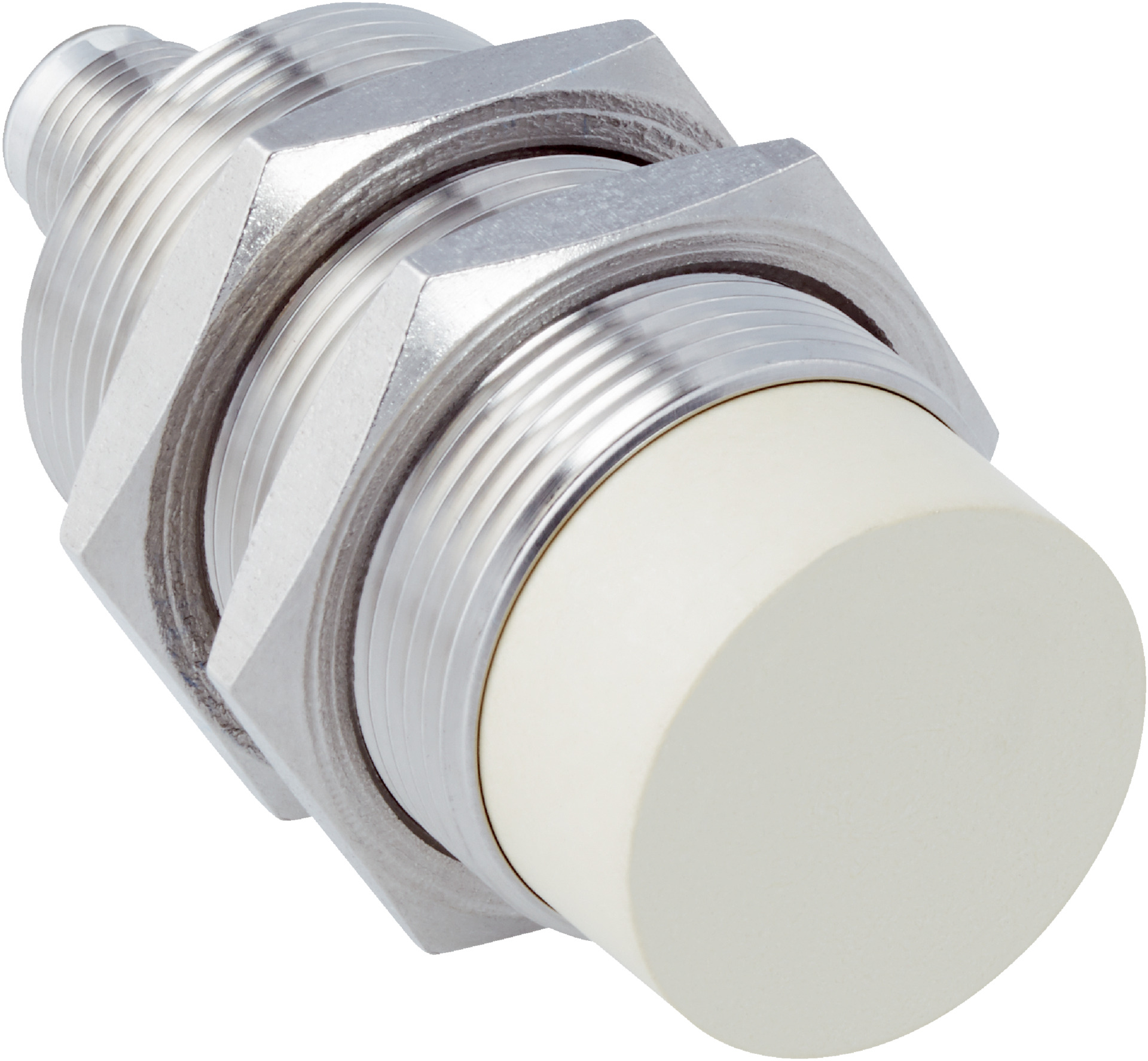

M30 Inductive Proximity Sensor | Non-Flush Installation | IP68 & IP69K Rated | 20mm Sensing Range | by SICK
The M30 Inductive Proximity Sensor is designed for robust industrial automation, featuring a non-flush installation type and a sensing range of 20 mm. With an IP68 and IP69K rated enclosure, it excels in hygienic and washdown zones, ensuring high durability against cleaning agents and extreme temperatures up to 100°C. Ideal for applications requiring reliable sensing in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M30 x 1.5
- Diameter: 30 mm
- Sensing range Sn: 20 mm
- Safe sensing range Sa: 16.2 mm
- Installation type: Non-flush
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40°C to +100°C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Protection class: III
- Dimensions (H x L x W): 30mm x 70mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with sensing range of 20 mm
- Switching frequency up to 500 Hz with NPN normally open output
- IP68 and IP69K rated enclosure for high protection
- Resistant to cleaning agents and temperature resistant up to 100°C
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
- Supplied with V4A stainless steel mounting nuts
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring non-flush inductive sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents supports hygienic environments minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

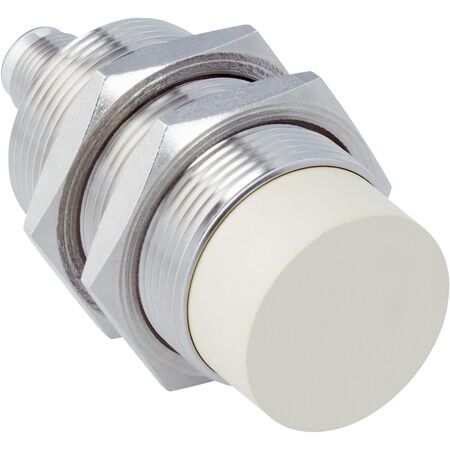

The SICK IMF30-20NNSNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
