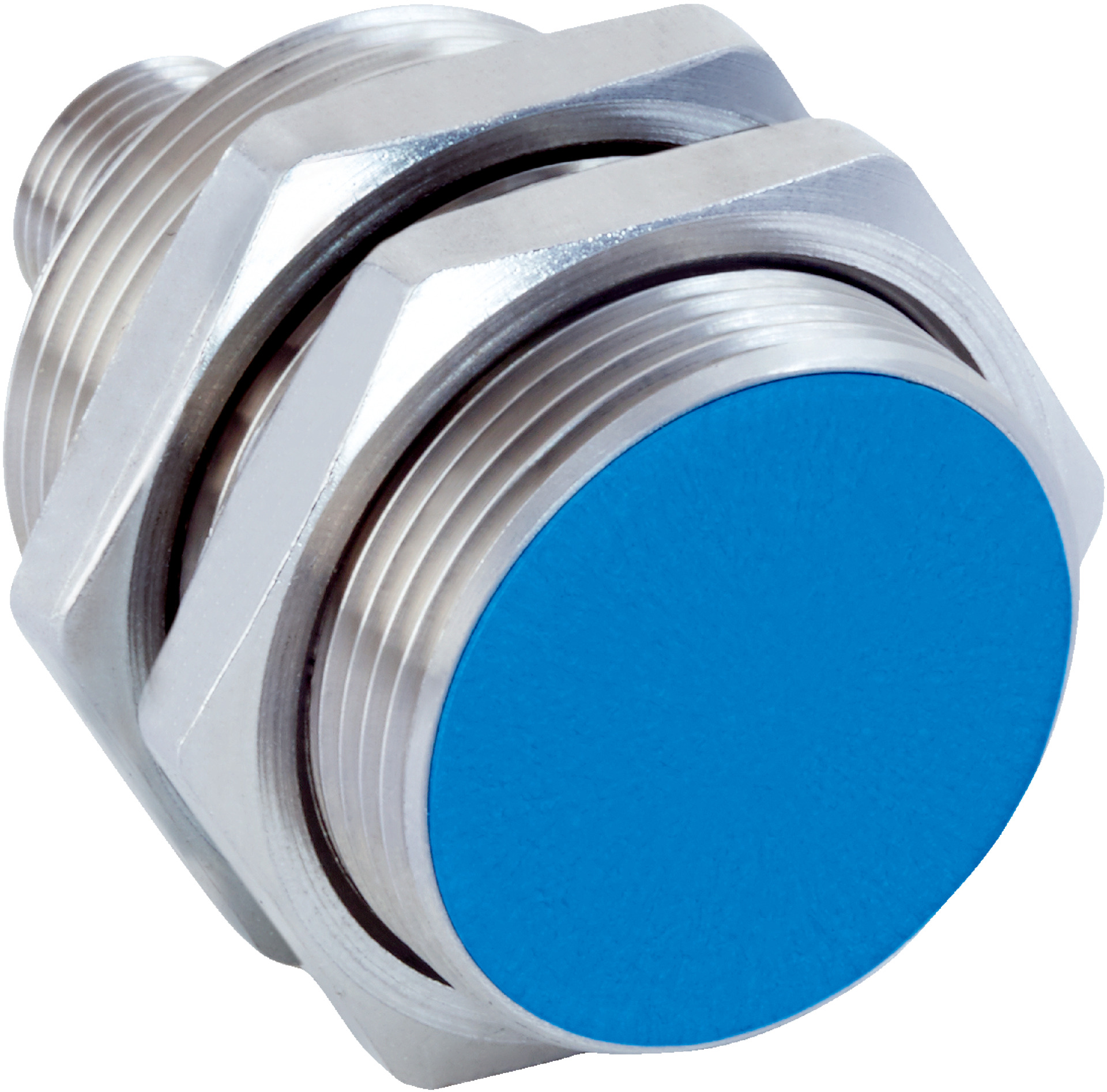

M30 Inductive Proximity Sensor | Short-body Design | 15mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The M30 Inductive Proximity Sensor is designed for reliable object detection in industrial automation. With a short-body housing and a sensing range of 15mm, it excels in harsh environments, including zones with coolants and lubricants. Featuring a robust IP67/IP68/IP69K protection rating, this sensor ensures durability and minimal downtime, making it ideal for mobile machines and challenging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, 2 ms sinusoidal; vibration resistance: 60 g peak
- Ambient operating temperature: -40 °C to +85 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Protection class: III
- LED indication: Yellow LED for switching status
- Dimensions (H x L x W): 50.7mm x 50.7mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency of 500 Hz
- NPN switching output with NC function
- Connection via male M12 4-pin connector
- High protection rating: IP67, IP68, IP69K
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN standards
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMG30-15BNOZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
