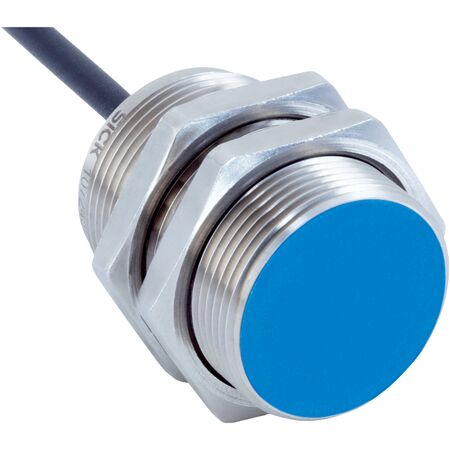

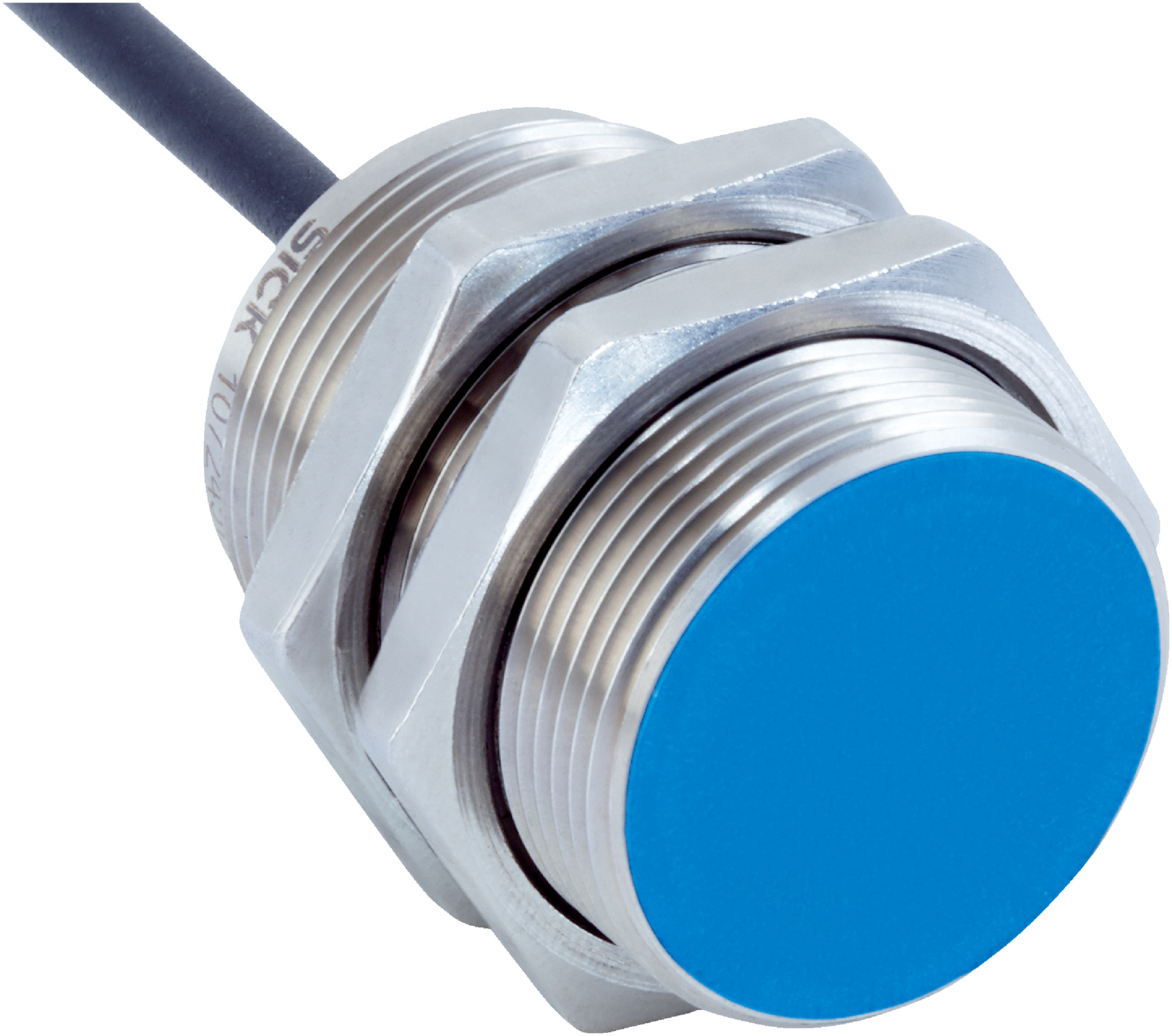

M30 Inductive Proximity Sensor | Short-body Design | 15mm Sensing Range | IP67, IP68, IP69K Rated | by SICK
The M30 Inductive Proximity Sensor is designed for reliable object detection in industrial automation. With a short-body housing and a sensing range of 15 mm, it excels in harsh environments, including zones with coolants and lubricants. Built to withstand extreme temperatures from -40 °C to +85 °C, this sensor features a high protection rating and is resistant to shock and vibration, making it ideal for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 3.9 mm
- Bending radius: fixed installation > 5x cable diameter, flexible use > 10x cable diameter
- Short-circuit and power-up pulse protection included
- Shock resistance: 60 g peak vibration, 100 g shock
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 40.7mm x 40.7mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency of 500 Hz
- NPN switching output with NC function
- Cable connection, 3-wire, 2 m length
- High protection rating: IP67, IP68, IP69K
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic LCP sensing face
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Resistant to harsh environments minimizing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMG30-15BNOZU2K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
