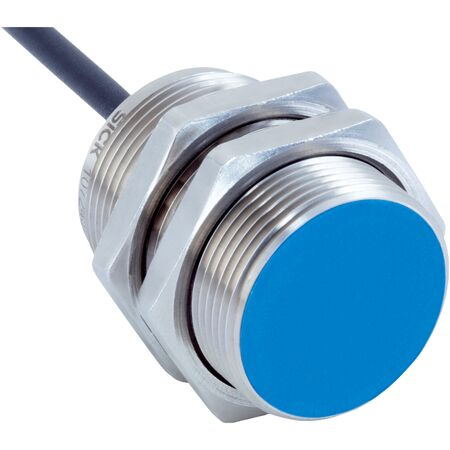

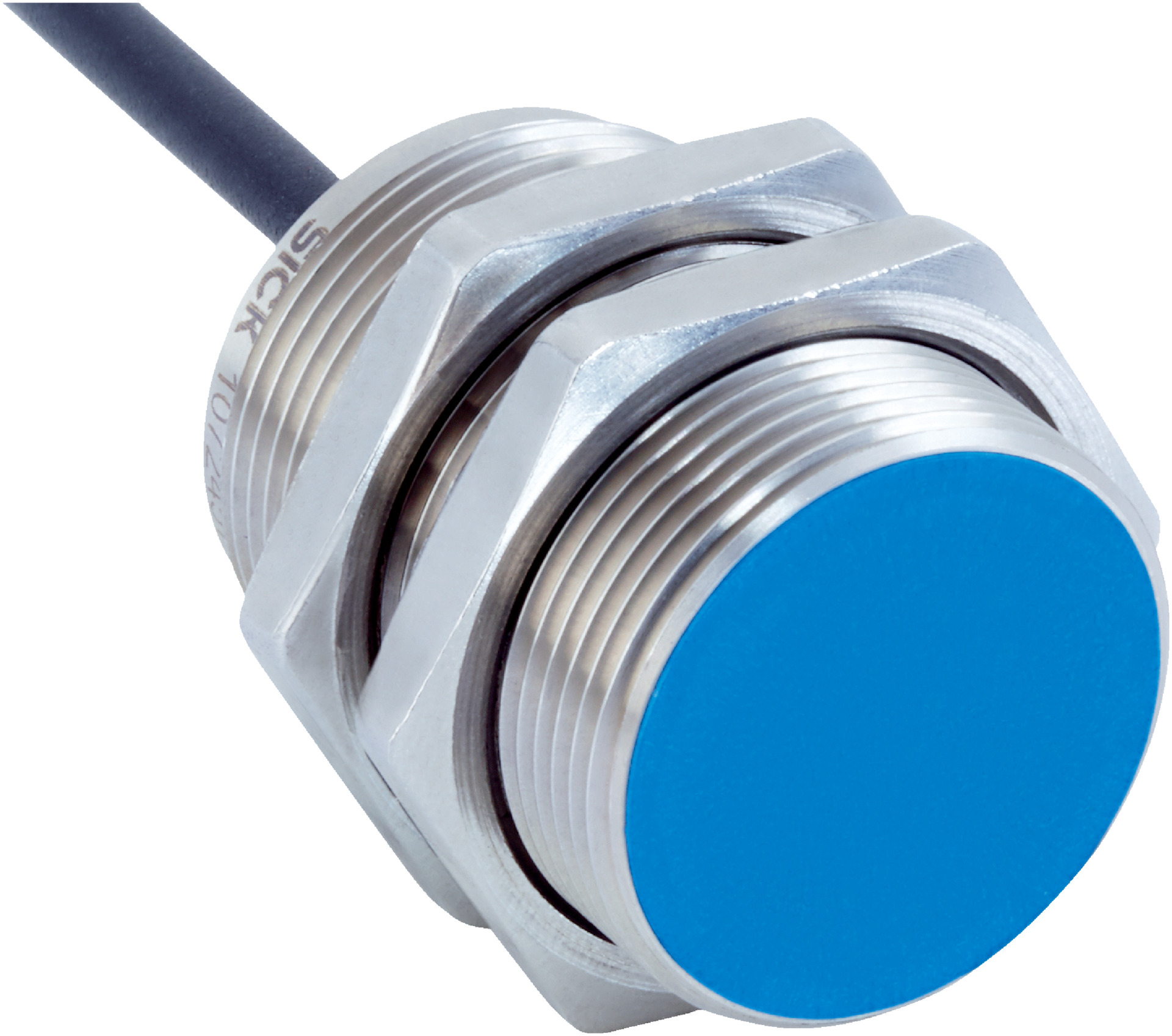

M30 Inductive Proximity Sensor | Short-body Design | IP67/IP68/IP69K Rated | 15mm Sensing Range | by SICK
The M30 Inductive Proximity Sensor is designed for industrial automation, featuring a short-body design and a sensing range of 15 mm. With a robust IP67/IP68/IP69K rating, it withstands harsh environments, making it ideal for detecting metal objects in mobile machines and areas with coolants. Built for reliability, this sensor operates within a temperature range of -40 °C to +85 °C, ensuring consistent performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally open
- Switching frequency: 500 Hz
- Connection type: 3-wire cable, 2 m length
- Enclosure rating: IP67, IP68, IP69K
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Operating temperature: -40 °C to +85 °C
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10%
- No load current: ≤ 10 mA
- Continuous current: ≤ 200 mA
- Shock resistance: 100 g, 2 ms sinusoidal
- Vibration resistance: 60 g peak (10 Hz to 2000 Hz)
- Cable diameter: Ø 3.9 mm, PUR material
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 40.7mm x 40.7mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency of 500 Hz with PNP normally open output
- Cable connection, 3-wire, 2 m length
- High protection rating: IP67, IP68, IP69K
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN standards
- Nickel-plated brass housing with plastic LCP sensing face
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMG30-15BPSZU2K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
