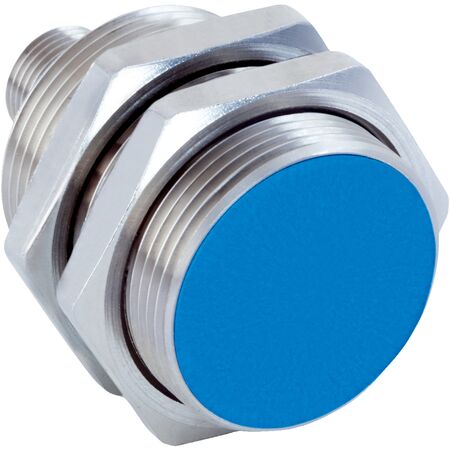

M30 Inductive Proximity Sensor | Short-Body Design | IP67/IP68/IP69K Rated | 15mm Sensing Range | by SICK
The M30 Inductive Proximity Sensor is designed for reliable object detection in industrial automation. With a short-body housing and a sensing range of 15 mm, it excels in harsh environments, including zones with coolants and lubricants. Featuring a robust IP67/IP68/IP69K protection rating and PNP NC output, this sensor ensures durability and high performance, making it ideal for mobile machines and challenging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 60 g peak
- EMC compliant according to EN 60947-5-2
- Protection class III
- LED yellow indicator for switching status
- Dimensions (H x L x W): 50mm x 50.7mm x 30mm
- Weight: 0.15 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency up to 500 Hz
- PNP switching output with NC function
- Connection via male M12 4-pin connector
- High protection rating: IP67, IP68, IP69K
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMG30-15BPOZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
