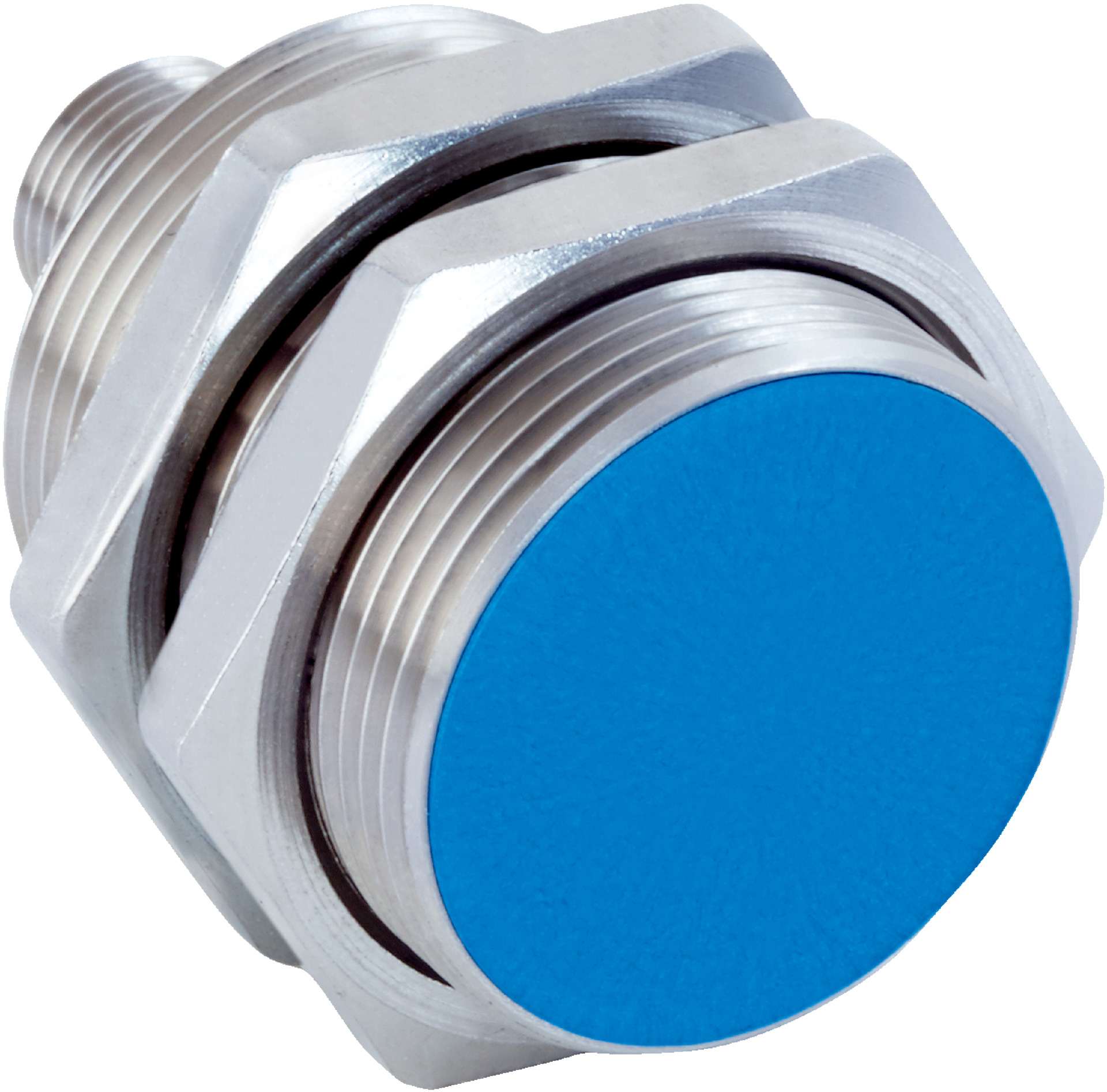

M30 Inductive Proximity Sensor | Short-body Design | NPN Output | IP67/IP68/IP69K Rated | by SICK
The M30 Inductive Proximity Sensor is designed for reliable detection of metal objects in industrial automation. With a short-body housing and a sensing range of 15 mm, it features an NPN normally open output and operates at a high switching frequency of 500 Hz. Built to withstand harsh environments, this sensor is ideal for mobile machines and applications involving coolants and lubricants, ensuring durability and minimal downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 500 Hz
- Switching output: NPN, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67, IP68, IP69K
- Ambient operating temperature: -40 °C to +85 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Thread size: M30 x 1.5
- Sensing range Sn: 15 mm
- Safe sensing range Sa: 12.15 mm
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Dimensions (H x L x W): 50.7mm x 50.7mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type with 15 mm sensing range
- NPN normally open switching output with DC 3-wire electrical wiring
- High switching frequency of 500 Hz
- Enclosure rating IP67, IP68, and IP69K for harsh environments
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN 60068 standards
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Resistant to harsh environments minimizing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG30-15BNSZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
