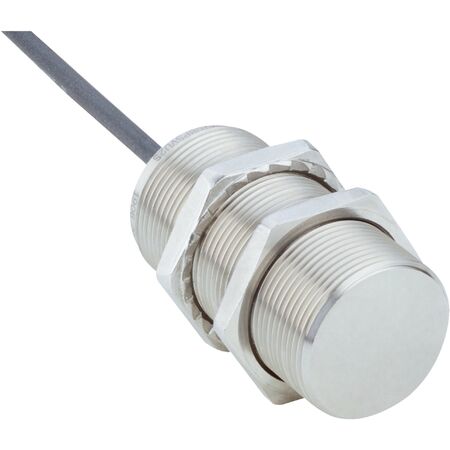

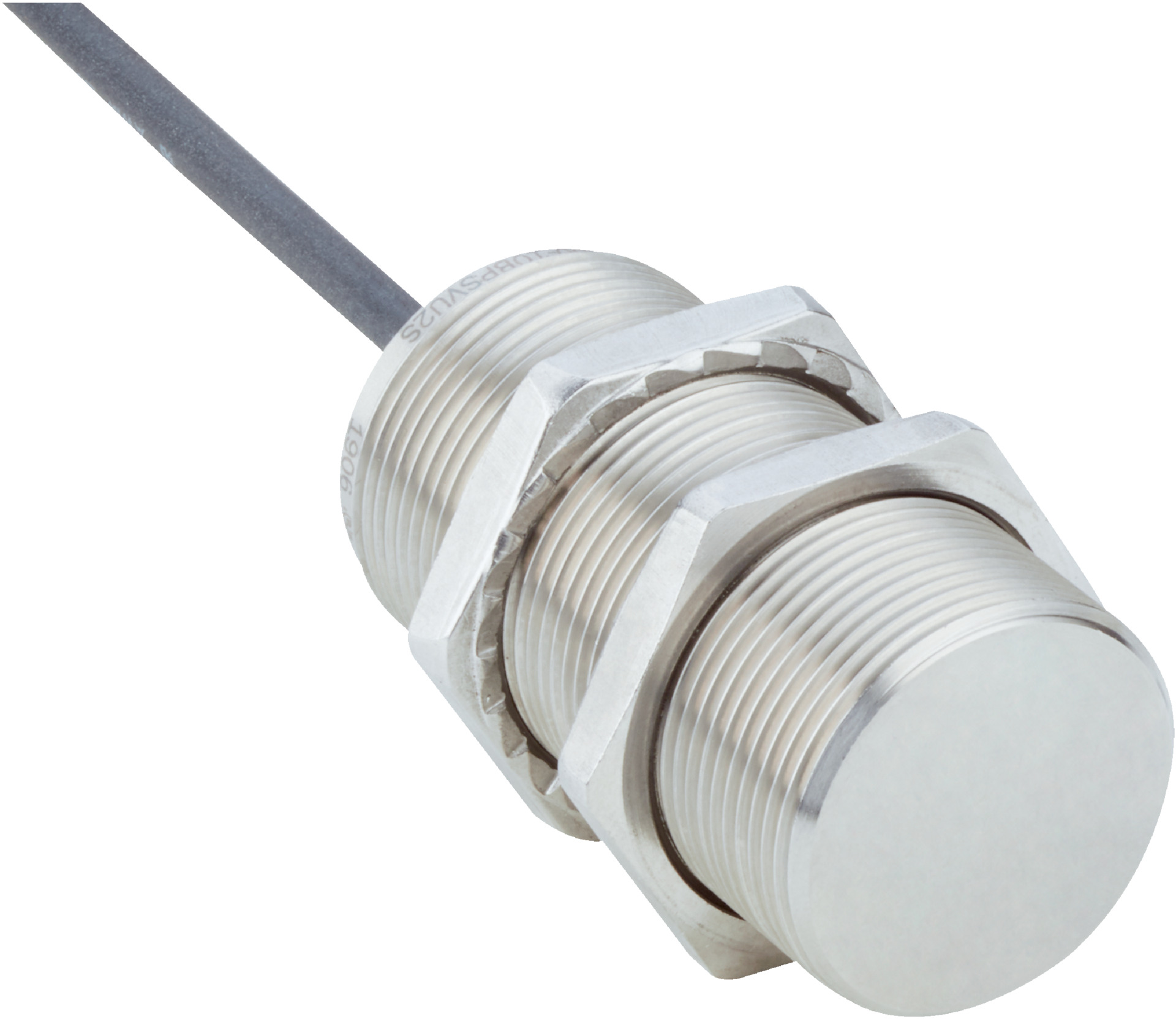

M30 Inductive Proximity Sensor | Stainless Steel Housing | IP68 & IP69K Rated | 10 mm Sensing Range | by SICK
The M30 Inductive Proximity Sensor is designed for reliable object detection in industrial automation. With a robust stainless steel housing and an IP68/IP69K rating, it excels in harsh environments, including those with coolants and lubricants. Featuring a sensing range of 10 mm and a switching frequency of 50 Hz, this sensor is perfect for flush installations in machinery, ensuring durability and high performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter 4.5 mm
- Conductor size: 0.34 mm²
- Shock resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.15 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Flush installation type
- Switching frequency of 50 Hz
- NPN normally open switching output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A resistant to coolant lubricants
- Mounting nut included with locking teeth for secure installation
- Shock and vibration resistant with high durability
- Operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Harsh environments requiring corrosion resistance
- Flush installation in machinery and equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High protection rating (IP68, IP69K) ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMI30-10BNSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
