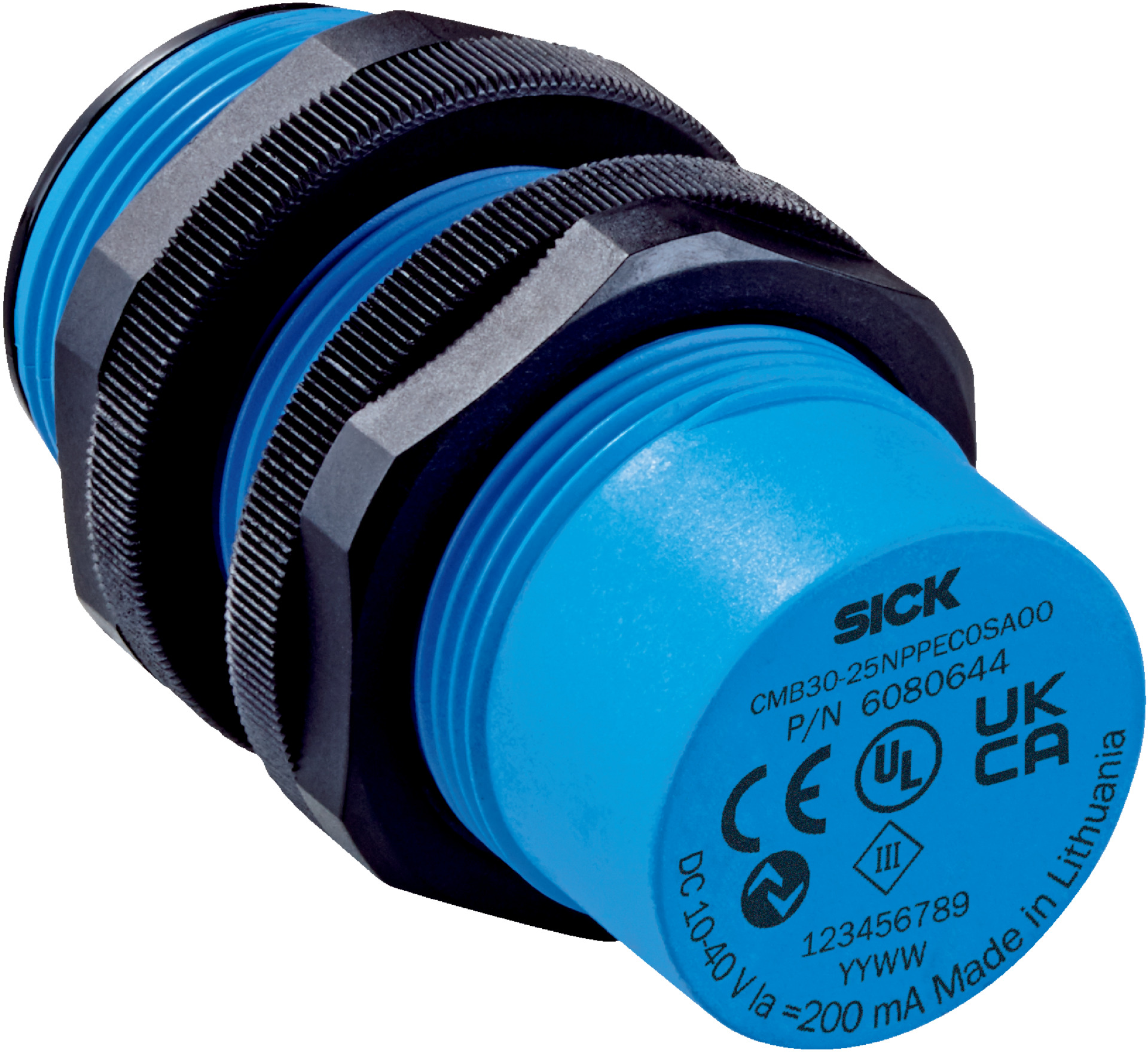

M30 Non-flush Proximity Sensor | 25mm Sensing Range | IP67, IP68, IP69K Rated | by SICK
The M30 Non-flush Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of up to 25 mm and robust IP67, IP68, and IP69K ratings for dust and water protection. Ideal for manufacturing process control and safety monitoring, this sensor supports IO-Link V1.1 for enhanced smart functions, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric thread M30 x 1.5
- Sensing range Sn: 0 mm to 25 mm
- Safe sensing range Sa: 19.13 mm
- Switching frequency: 50 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, complementary, wire configurable
- Electrical wiring: DC 4-wire
- Supply voltage: 10 V DC to 36 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V DC
- Current consumption: ≤ 20 mA
- Time delay before availability: ≤ 300 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Enclosure rating: IP67, IP68, IP69K
- Shock resistance: 30 g, 11 ms shocks per EN 60068-2-27
- Vibration resistance: 10 Hz to 150 Hz, 1 mm / 15 g per EN 60068-2-6
- Ambient operating temperature: -30 °C to +85 °C
- Housing material: Plastic, PBT
- Housing length: 74 mm
- Thread length: 45.5 mm
- Tightening torque max: ≤ 7.5 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 74mm x 74mm x 30mm
- Weight: 0.1 kg
Key Features
- Non-flush installation type with metric housing
- Sensing range up to 25 mm with safe sensing range of 19.13 mm
- IP67, IP68, and IP69K rated for robust protection against dust and water
- Visual adjustment indicator for easy sensitivity tuning
- Wire configurable complementary PNP switching output
- Male M12 4-pin connector for reliable electrical connection
- Shock and vibration resistant according to EN 60068 standards
- Supports IO-Link V1.1 communication interface for smart sensor functions
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Packaging and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP69K rated housing reduces need for frequent replacements
- Energy-efficient operation with low current consumption (≤ 20 mA)
- Supports smart sensor functions via IO-Link to optimize system performance and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

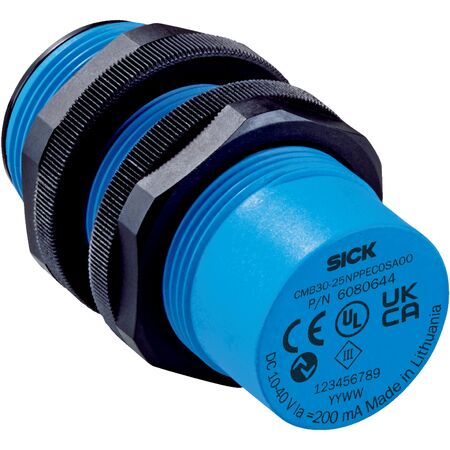

The SICK CMB30-25NPPEC0SA00 sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
