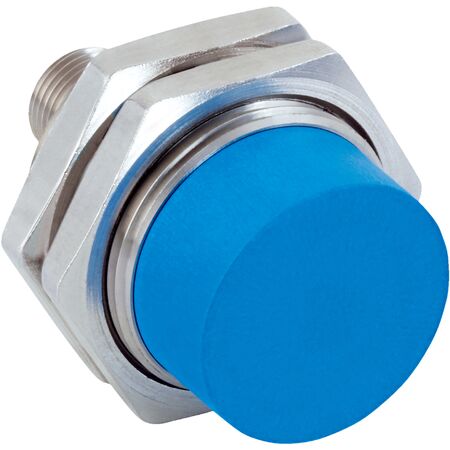

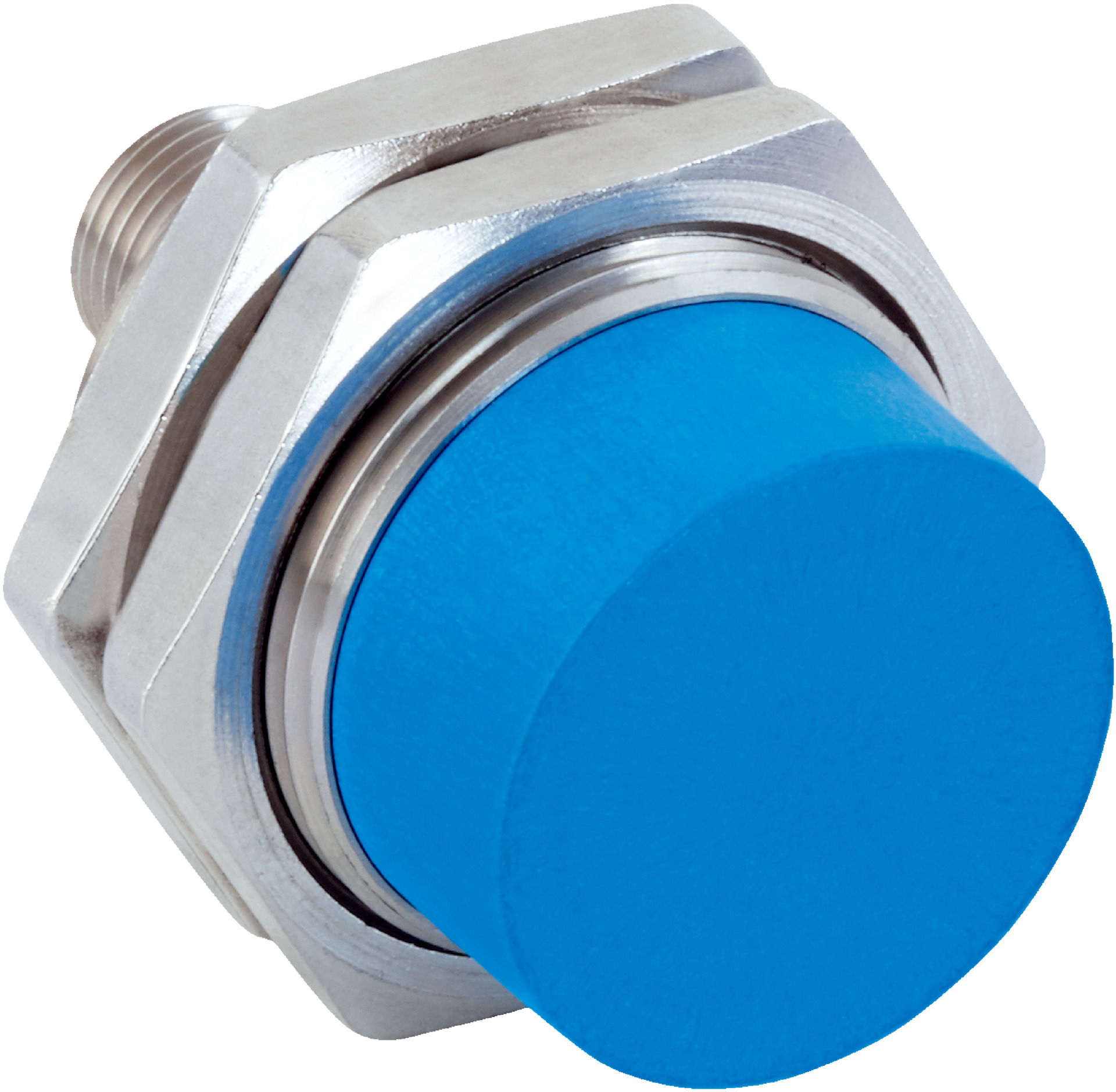

M30 Non-Flush Proximity Sensor | IP67/IP68/IP69K Rated | NPN Output | 20mm Sensing Range | by SICK
The M30 Non-Flush Proximity Sensor is designed for reliable object detection in industrial automation. With a robust IP67/IP68/IP69K rating, it withstands harsh environments, making it ideal for mobile machinery and areas with coolants. Featuring a 20mm sensing range and NPN normally open output, this sensor ensures high performance and durability, reducing downtime and maintenance costs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching output: NPN, normally open
- Switching frequency: 500 Hz
- Current rating: Continuous current ≤ 200 mA, No load current ≤ 10 mA
- Protection class: III
- Enclosure rating: IP67, IP68, IP69K
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Operating temperature: -40 °C to +85 °C
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Short-circuit and power-up pulse protection included
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- MTTFD: 1,820 years
- Mission time: 20 years
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency of 500 Hz with NPN normally open output
- Connection via male M12 4-pin connector
- High protection rating: IP67, IP68, IP69K
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machinery sensing in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMG30-20NNSZC0K proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
