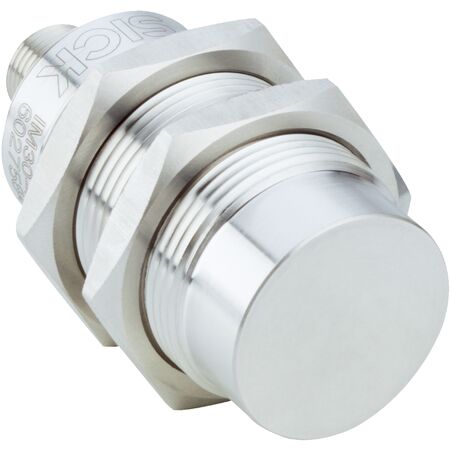

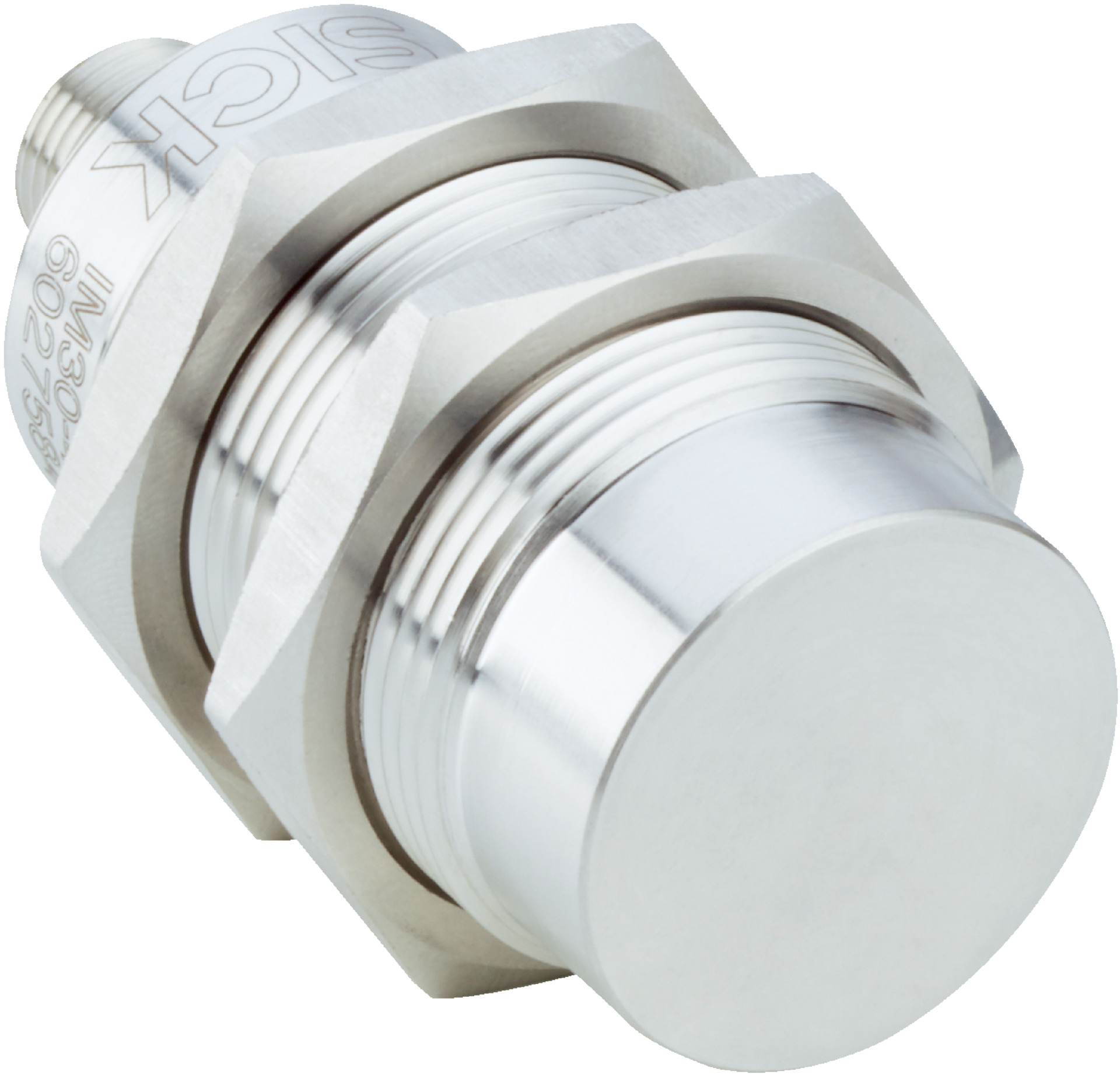

M30 Non-flush Proximity Sensor | IP68 & IP69K Rated | 40mm Sensing Range | Stainless Steel | by SICK
The M30 Non-flush Proximity Sensor is designed for robust industrial applications, featuring a 40mm sensing range and IP68/IP69K enclosure ratings for high protection against dust and water. Ideal for hygienic and washdown zones, this stainless steel sensor ensures reliable performance in challenging conditions, making it perfect for industrial automation and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M30 x 1.5 thread
- Diameter: 30 mm
- Pressure resistance: ≤ 40 bar
- Sensing range Sn: 40 mm
- Safe sensing range Sa: 32.4 mm
- Installation type: Non-flush
- Switching frequency: 90 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 40 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift: ≤ 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -25°C to +85°C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 63.5mm x 63.5mm x 30mm
- Weight: 0.2 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Pressure resistance up to 40 bar
- Sensing range of 40 mm with safe sensing range of 32.4 mm
- Non-flush installation type
- Switching frequency of 90 Hz with PNP normally open output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A resistant to cleaning agents
- Triple sensing range and visual adjustment indicator
- Supports IO-Link communication interface
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature from -25°C to +85°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation with non-flush sensor installation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- Resistant to cleaning agents, supporting hygienic environments and reducing chemical waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IM30-40NPS-NC1 sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
