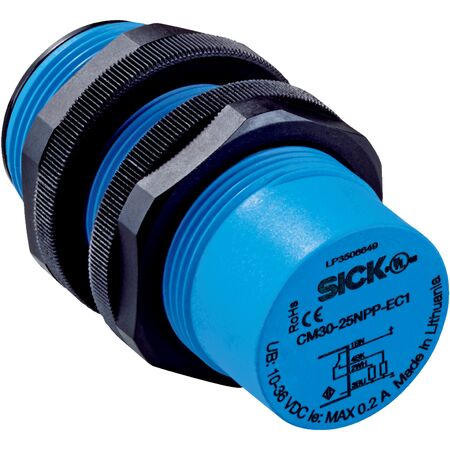

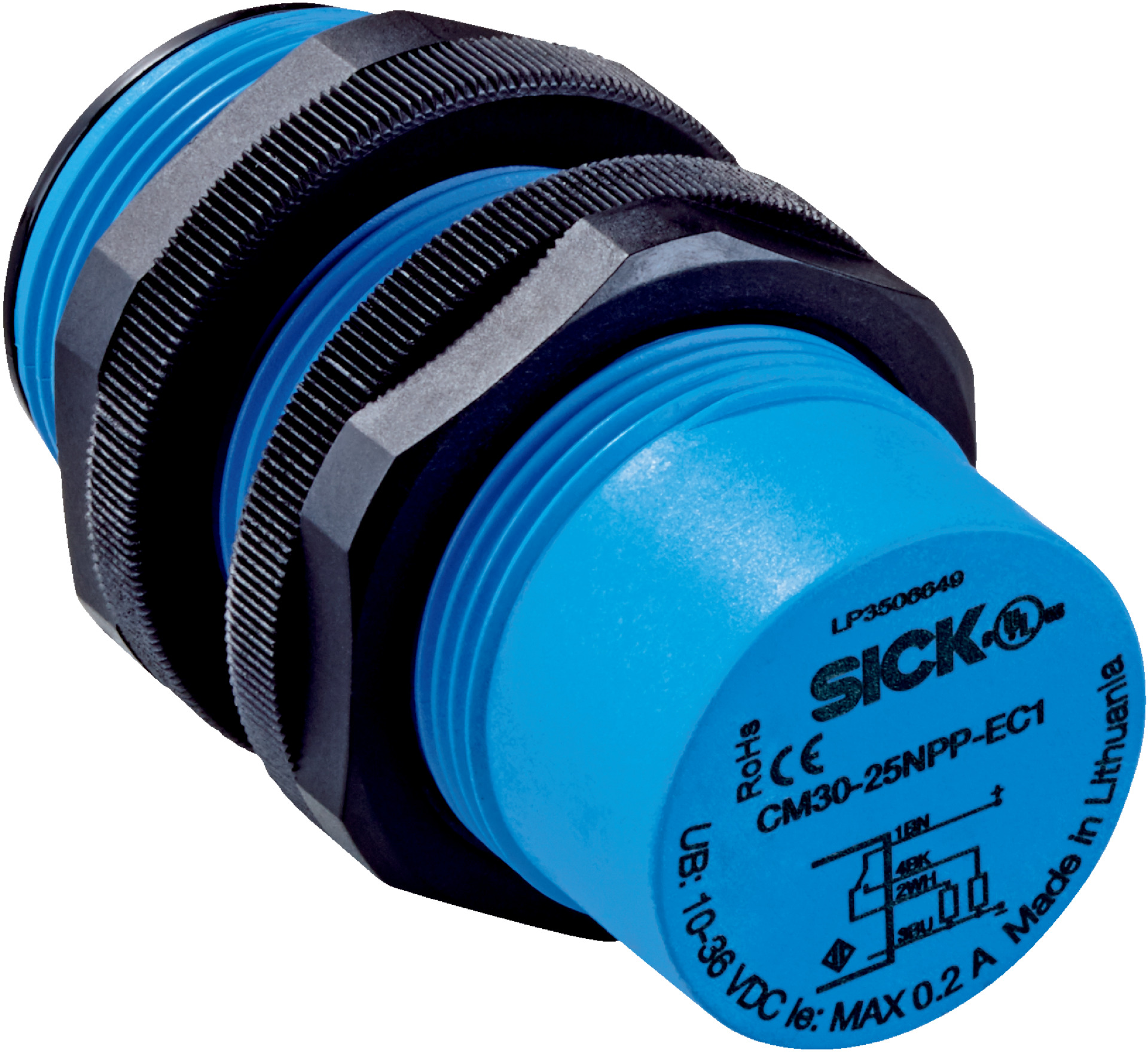

M30 NPN Proximity Sensor | IP68/IP69K Rated | 4mm to 25mm Sensing Range | NPN Output | by SICK
The M30 NPN Proximity Sensor is designed for industrial automation, featuring a robust sensing range from 4mm to 25mm and an IP68/IP69K rating for harsh environments. With a reliable NPN output and shock resistance, it's perfect for object detection in manufacturing lines, ensuring durability and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 12 mA
- Switching frequency: 50 Hz
- Voltage drop: ≤ 2 V DC
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Connection type: Male connector M12, 4-pin
- Housing material: Plastic, PBT
- Thread length: 45.5 mm
- Tightening torque max: ≤ 7.5 Nm
- Time delay before availability: ≤ 200 ms
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 74mm x 74mm x 30mm
- Weight: 0.1 kg
Key Features
- Non-flush installation type with M30 x 1.5 metric thread housing
- Sensing range from 4 mm to 25 mm with safe sensing range of 19.13 mm
- NPN switching output with complementary wire configurable function
- High enclosure rating of IP68 and IP69K for harsh environments
- Shock and vibration resistant according to EN 60068
- Short-circuit and power-up pulse protection included
- Operating temperature range from -30°C to +85°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation sensing
- Object detection in manufacturing lines
- Non-flush mounting environments requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP68/IP69K rated housing reduces need for frequent replacements
- Energy-efficient DC 4-wire electrical wiring minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK CM30-25NNP-EC1 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
