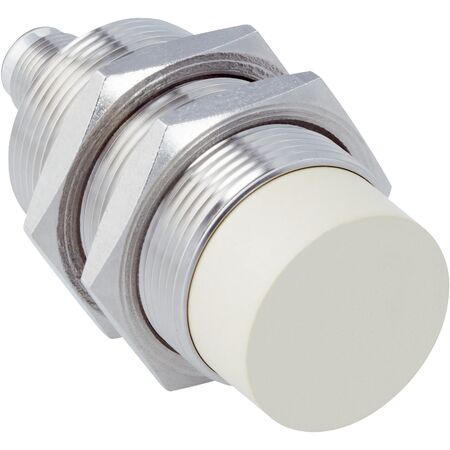

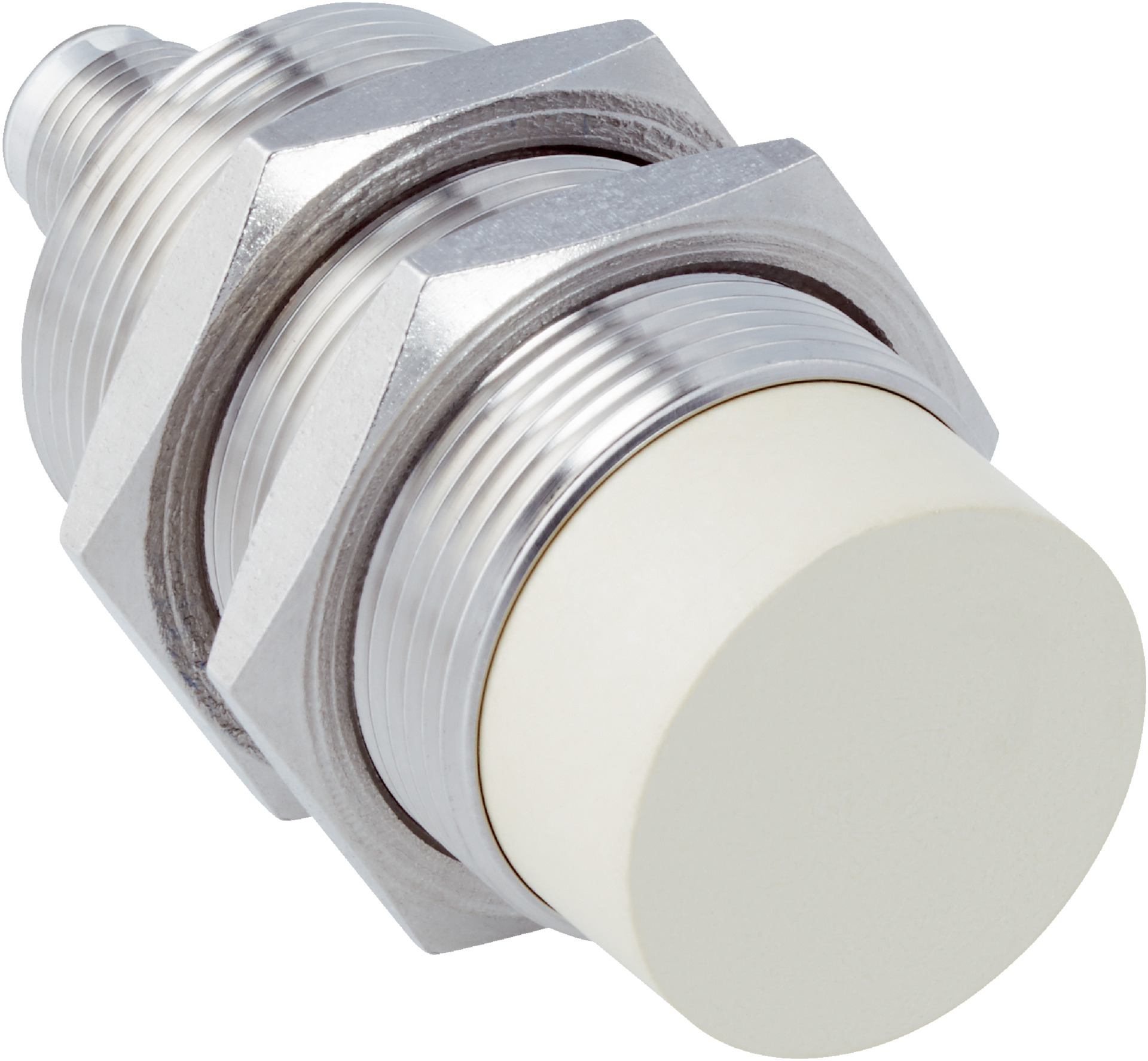

M30 PNP Proximity Sensor | 20 mm Sensing Range | IP68 & IP69K Rated | Stainless Steel Housing | by SICK
The M30 PNP Proximity Sensor is designed for robust industrial automation, featuring a 20 mm sensing range and IP68/IP69K ratings for protection against dust and high-pressure washdown. Ideal for hygienic zones and challenging applications, this sensor offers a high switching frequency of 500 Hz and is built with durable stainless steel housing, ensuring longevity and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M30 x 1.5
- Sensing range (Sn): 20 mm
- Safe sensing range (Sa): 16.2 mm
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP complementary
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ±10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Operating temperature: -40°C to +100°C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with 20 mm sensing range
- PNP complementary switching output with 4-wire DC electrical wiring
- High switching frequency of 500 Hz
- IP68 and IP69K rated for protection against dust and high-pressure washdown
- Resistant to cleaning agents and temperature resistant from -40°C to +100°C
- Equipped with IO-Link communication interface for smart sensor integration
- Shock and vibration resistant with high mechanical durability
- Includes mounting nuts made of V4A stainless steel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh cleaning agents, supporting hygienic environments without damage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMF30-20NPPNC0S proximity sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
