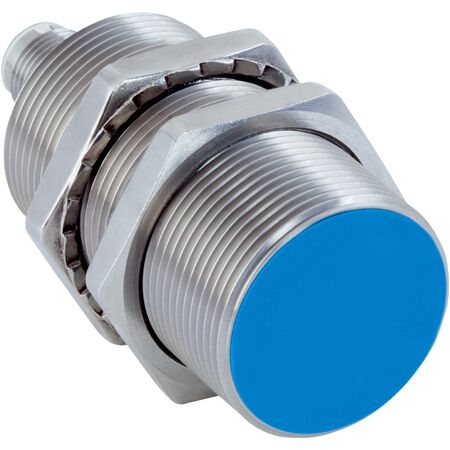

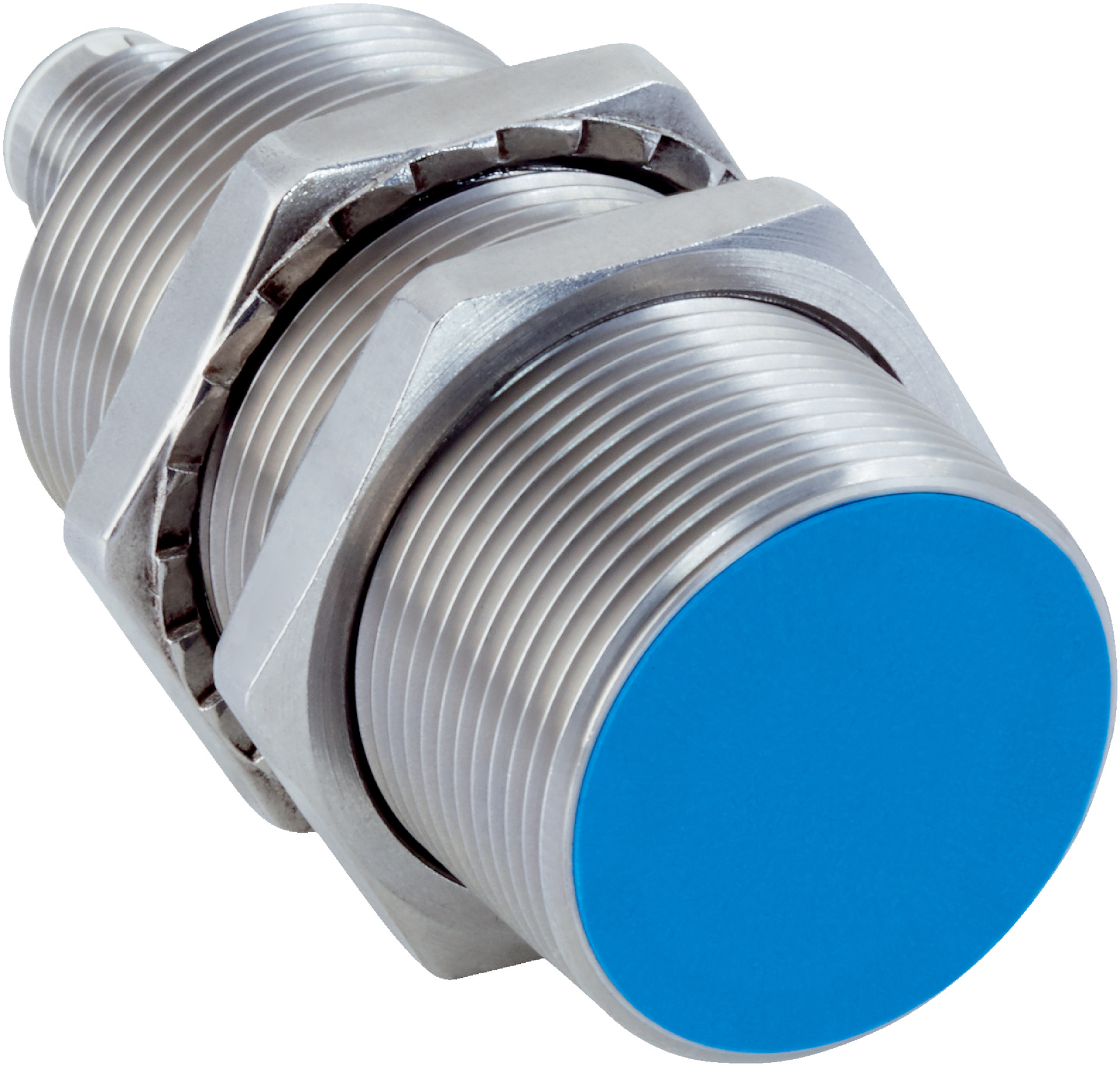

M30 Proximity Sensor | 15 mm Sensing Range | IP68 & IP69K Rated | Stainless Steel Housing | by SICK
The M30 Proximity Sensor is designed for industrial automation, featuring a sensing range of up to 15 mm and an IP68/IP69K rated enclosure for superior protection against dust and water. With up to 4 adjustable switching points and multiple modes, it’s perfect for machine safety and control systems, especially in environments with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M30 x 1.5 thread
- Sensing range Sn: 0 mm to 15 mm
- Safe sensing range Sa: 12.15 mm
- Number of switching points: Up to 4 adjustable
- Switching modes: Single point, Window mode, Two point mode
- Switching frequency: 200 Hz
- Installation type: Flush
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, programmable NC/NO
- Output function: NC / NO
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68, IP69K
- Special features: Smart Task logic, resistant to coolant lubricants, IO-Link communication
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40°C to +75°C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Housing length: 70 mm
- Thread length: 52 mm
- Tightening torque max: Typically 100 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range up to 15 mm with safe sensing range of 12.15 mm
- Up to 4 adjustable switching points or windows
- Multiple switching modes including single point, window mode, two point mode
- Switching frequency of 200 Hz
- Flush installation type with male M12 4-pin connector
- PNP programmable switching output with NC/NO function
- IP68 and IP69K rated enclosure for high resistance to water and dust
- Smart Task logic functions including AND, OR, XOR, hysteresis
- Resistant against coolant lubricants
- Communication via IO-Link V1.1 with 5 ms cycle time
- Stainless steel V2A housing and plastic LCP sensing face
- Wide ambient operating temperature range from -40°C to +75°C
- Short-circuit and power-up pulse protection
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and configuration according to industrial safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh environments reducing sensor failure and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMC30-15BPPVC0SA00 proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
