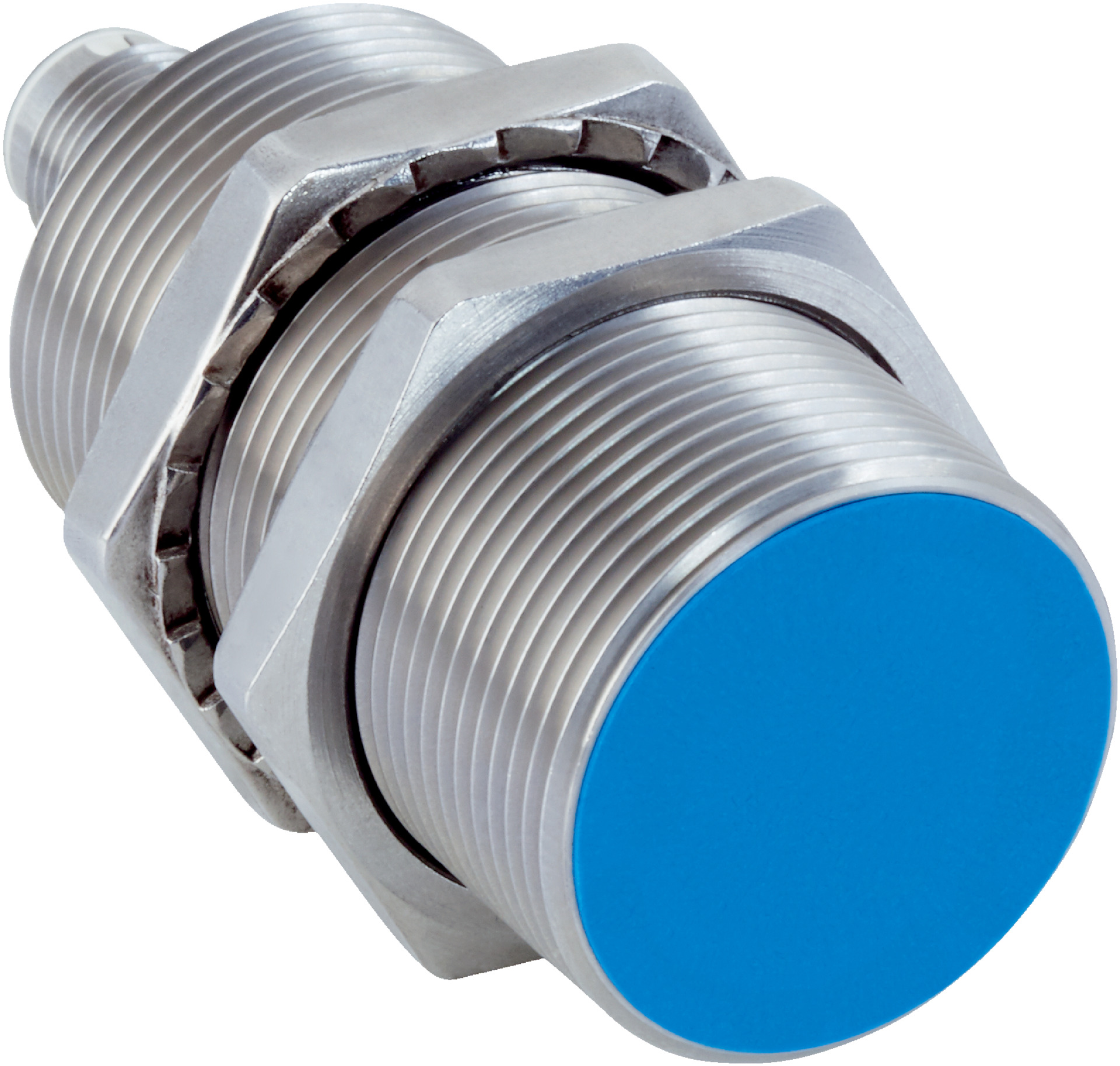

M30 Proximity Sensor | IO-Link Communication | IP68 & IP69K Rated | Stainless Steel Housing | by SICK
The M30 Proximity Sensor with IO-Link communication is designed for industrial automation, offering a sensing range of up to 15 mm and programmable hysteresis. Built for harsh environments, it features an IP68 and IP69K rating, making it resistant to coolants and lubricants. Ideal for object detection and counting applications, this robust sensor ensures reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Programmable hysteresis
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Resolution typical: 25 µm (0-6 mm), 75 µm (6-10 mm), 300 µm (10-15 mm)
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Process data length: 32 Bit
- Switching output: PNP, programmable NC/NO
- Enclosure rating: IP68, IP69K
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range up to 15 mm with safe sensing range of 12.15 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- High switching frequency of 200 Hz
- Flush installation type with male M12 4-pin connector
- PNP programmable switching output with IO-Link communication
- Enclosure rating IP68 and IP69K for harsh environments
- Resistant against coolant lubricants
- Smart Task functionality with counter and debouncing
- Operating temperature range from -40 °C to +75 °C
- Shock and vibration resistant
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
- Installation by qualified personnel recommended; ensure proper mounting torque and correct electrical connections to maintain IP rating and sensor performance.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
- Counting and switching applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh chemicals and lubricants, reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

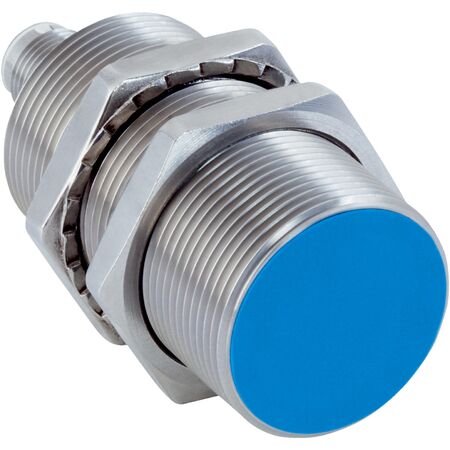

The SICK IMC30-15BPPVC0SA71 proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
