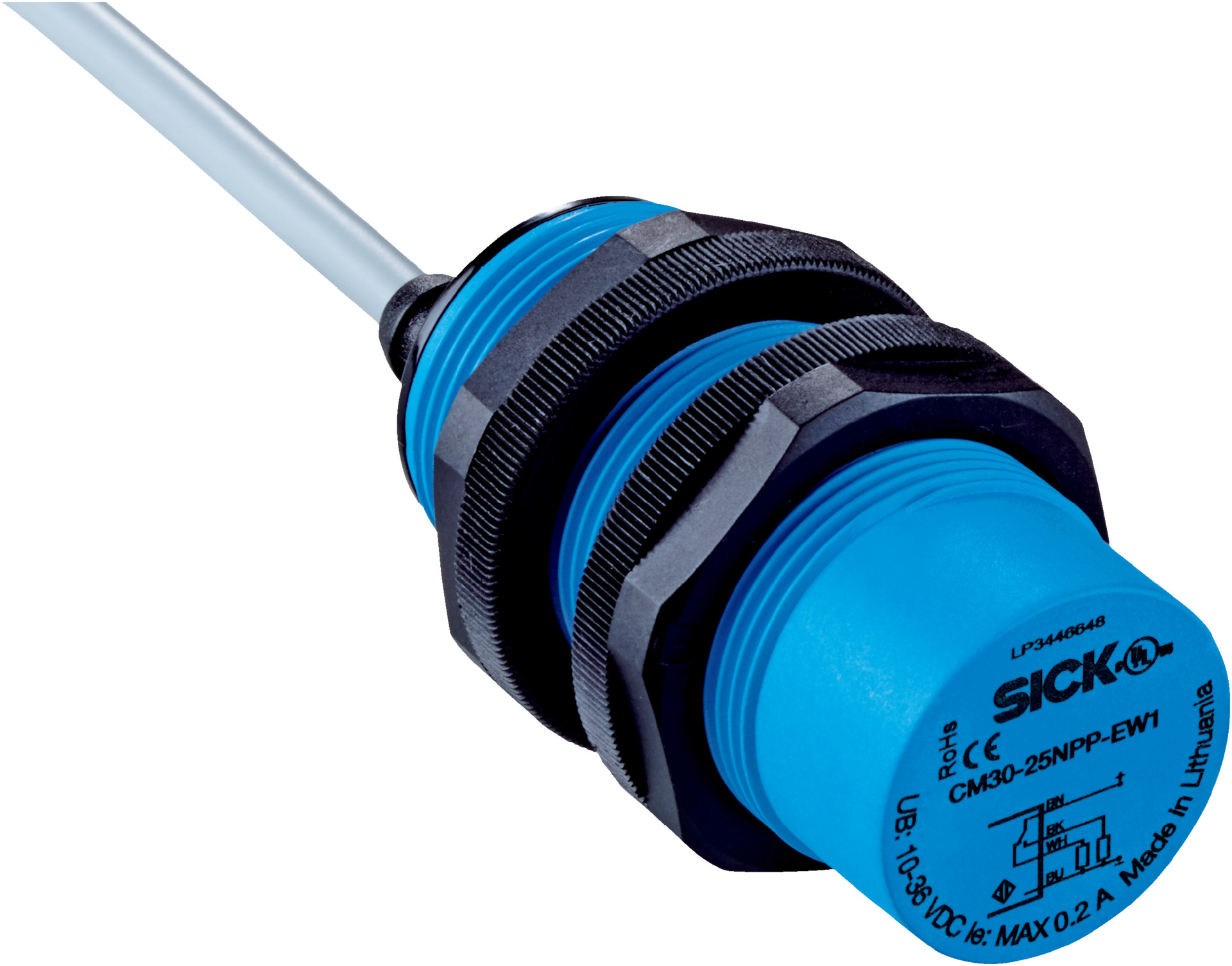

M30 Proximity Sensor | Non-Flush Installation | IP67, IP68, IP69K Rated | Sensing Range 25mm | by SICK
The M30 Proximity Sensor is designed for industrial automation, featuring a non-flush installation type and a sensing range of up to 25 mm. With a robust IP67, IP68, and IP69K protection rating, this sensor is perfect for harsh environments, ensuring reliable object detection and safety monitoring in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 12 mA
- Switching frequency: 50 Hz
- Voltage drop: ≤ 2 V DC
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ±10%
- Cable diameter: Ø 5.2 mm, PVC material
- Conductor size: 0.34 mm²
- Housing material: Plastic, PBT
- Thread length: 45.5 mm
- Tightening torque max: ≤ 7.5 Nm
- Time delay before availability: ≤ 200 ms
- EMC compliant according to EN 60947-5-2
- Protection rating: IP67, IP68, IP69K
- Dimensions (H x L x W): 81mm x 81mm x 30mm
- Weight: 0.1 kg
Key Features
- Non-flush installation type with M30 x 1.5 metric thread housing
- Sensing range up to 25 mm with safe sensing range of 19.13 mm
- PNP switching output with complementary wire configurable function
- High protection rating IP67, IP68, and IP69K for harsh environments
- Cable connection type: 4-wire, 2 m PVC cable
- Shock and vibration resistant according to EN 60068
- Short-circuit and power-up pulse protection included
- Operating temperature range from -30°C to +85°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

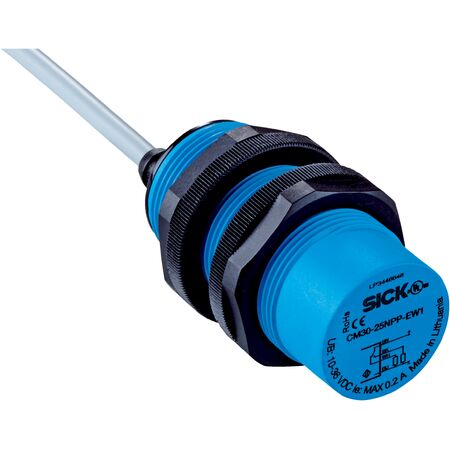

The SICK CM30-25NPP-EW1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
